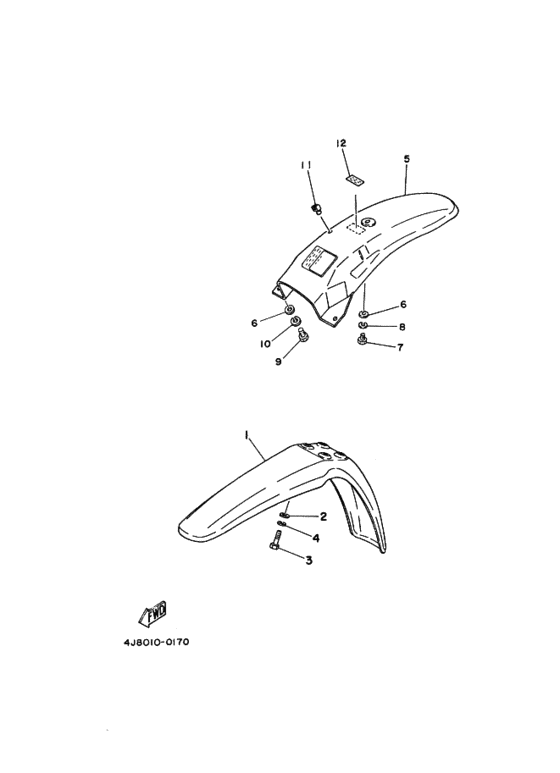

ﾌﾛﾝﾄﾌｴﾝﾀﾞ. ﾘﾔﾌｴﾝﾀﾞ Diagram Yamaha MR50
- Year
- 1980
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 4J8
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3T2-21511-00-20
Fender, Front
ＵＲ クリスタルシルバー |
3T2-21511-00-20 |
— | ||
|
2
|
2
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
2
|
2
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
3
|
3
97301-06030-00 Bolt |
97301-06030-00 |
from US $1.07 |
||
| replacements | |||||
|
3
|
3
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
3
|
3
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
4
|
4
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
4
|
4
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
5
|
5
3T2-21611-00-20
Fender, Rear
フユンダ，リヤ; ＵＲ クリスタルシルバー |
3T2-21611-00-20 |
— | ||
|
6
|
6
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
6
|
6
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
7
|
7
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
7
|
7
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
8
|
8
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
8
|
8
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
97301-06020-00 Bolt |
97301-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
10
|
10
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
10
|
10
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
90464-08020-00 Clamp |
90464-08020-00 |
from US $1.98 |
||
|
12
|
12
4J8-21668-00-00
Label, Tire
|
4J8-21668-00-00 |
— | ||
