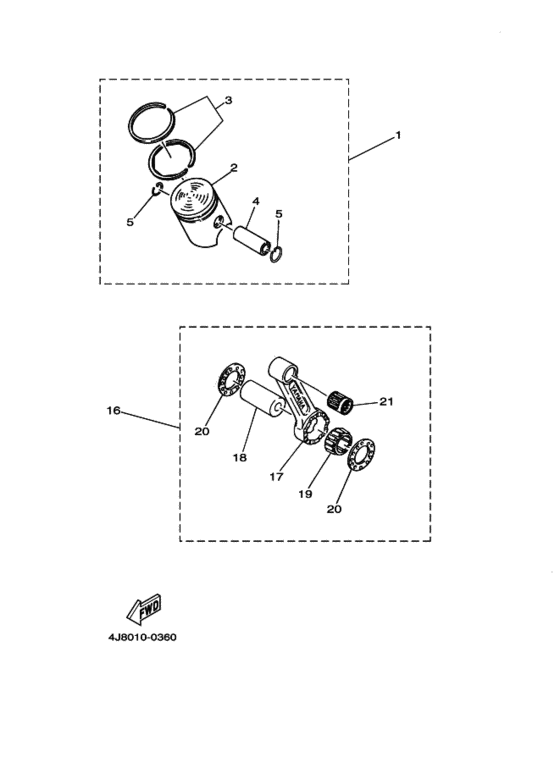

ﾘﾍﾟｱｷﾂﾄ Diagram Yamaha MR50
- Year
- 1980
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 4J8
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3T2-11630-00-00
Piston Assy (Std)
ピストンアセンブリ ; ＳＴＤ |
3T2-11630-00-00 |
— | ||
|
2
|
2
3T2-11631-00-97
Piston (Std)
．ピストン ; ＳＴＤ |
3T2-11631-00-97 |
— | ||
| replacement | |||||
|
2
|
2
3T2-11631-01-97
Piston-std (3T2-11631-00-97)
．ピストン ; ＳＴＤ |
3T2-11631-01-97 |
— | ||
|
3
|
3
2W1-11610-00-00 Piston Ringset Std．ピストンリングセツト ; ＳＴＤ |
2W1-11610-00-00 |
from US $69.50 |
||
|
4
|
4
517-11633-00-00 Pin, Piston．ピン，ピストン; |
517-11633-00-00 |
from US $12.47 |
||
| replacement | |||||
|
4
|
4
102-11633-02-00 Pin, Piston．ピン，ピストン; |
102-11633-02-00 |
from US $8.84 |
||
|
5
|
5
93450-13022-00 Circlip．サークリツプ; |
93450-13022-00 |
from US $1.70 |
||
|
16
|
16
1K9-11650-00-00
Connecting Rod Assy
|
1K9-11650-00-00 |
— | ||
| replacement | |||||
|
16
|
16
538-11650-01-00 Connecting Rod Assembly |
538-11650-01-00 |
US $209.72 |
||
|
17
|
17
538-11651-01-00 Rod, Connecting．ロツド，コネクテイング; |
538-11651-01-00 |
from US $101.16 |
||
| replacement | |||||
|
17
|
17
3R1-11651-01-00 Rod, Connecting (3R1-11651-00．ロツド，コネクテイング; |
3R1-11651-01-00 |
from US $123.10 |
||
|
18
|
18
257-11681-00-00
Pin, Crank 1
．ピン，クランク １; |
257-11681-00-00 |
— | ||
| replacement | |||||
|
18
|
18
257-11681-10-00 Pin, Crank 1．ピン，クランク １; |
257-11681-10-00 |
from US $29.75 |
||
|
19
|
19
93310-41809-00 Bearing．ベアリング; |
93310-41809-00 |
from US $19.69 |
||
| replacement | |||||
|
19
|
19
93310-418C4-00 Bearing Cylinder #10．ベアリング; |
93310-418C4-00 |
from US $19.69 |
||
|
20
|
20
90209-18112-00 Washer．ワツシヤ; |
90209-18112-00 |
from US $3.72 |
||
|
21
|
21
93310-11268-00 Bearing．ベアリング; |
93310-11268-00 |
from US $9.15 |
||
