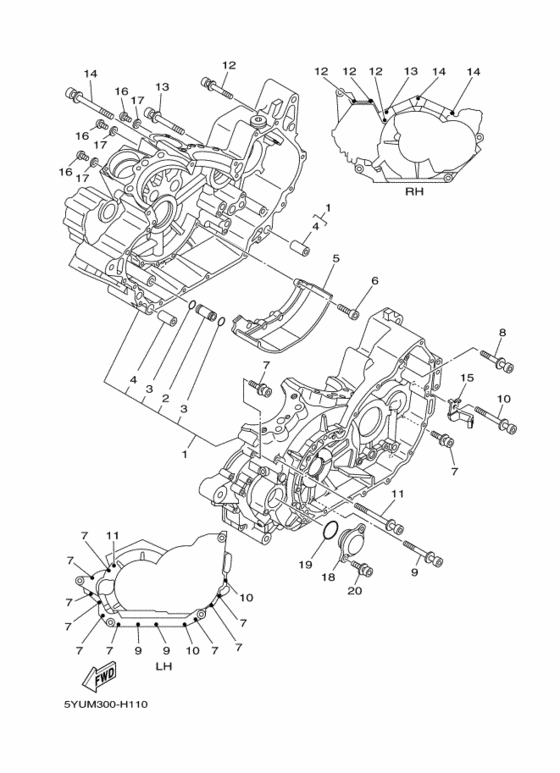

Crankcase Diagram Yamaha MT01 MT-01
- Year
- 2009
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 5YUP
- Sales region
- Europe (010)
- Engine Capacity
- 1670
- Color Variant
- A
- Model
- MT01
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5YU-15100-11-00
Crankcase Assy
|
5YU-15100-11-00 |
— | ||
|
2
|
2
4WM-15138-00-00 Nozzle 1 |
4WM-15138-00-00 |
from US $7.94 |
||
|
3
|
3
93210-10001-00 O-Ring |
93210-10001-00 |
from US $1.84 |
||
|
4
|
4
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.66 |
||
|
5
|
5
4WM-15123-00-00 Plate, Baffle 1 |
4WM-15123-00-00 |
from US $44.63 |
||
|
6
|
6
90110-06044-00 Bolt |
90110-06044-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
7
|
7
90110-06299-00 Bolt, Hexagon Socket Head |
90110-06299-00 |
from US $2.98 |
||
|
8
|
8
90110-06298-00 Bolt, Hexagon Socket Head |
90110-06298-00 |
from US $4.25 |
||
|
9
|
9
901-10063-13-00 Bolt, Hexagon Socket Head |
901-10063-13-00 |
US $11.03 |
||
|
10
|
10
901-10063-14-00 Bolt, Hexagon Socket Head |
901-10063-14-00 |
US $7.96 |
||
|
11
|
11
901-10063-15-00 Bolt, Hexagon Socket Head |
901-10063-15-00 |
from US $6.09 |
||
|
12
|
12
90110-06298-00 Bolt, Hexagon Socket Head |
90110-06298-00 |
from US $4.25 |
||
|
13
|
13
901-10080-95-00 Bolt, Hexagon Socket Head |
901-10080-95-00 |
from US $8.08 |
||
|
14
|
14
901-10080-98-00 Bolt, Hexagon Socket Head |
901-10080-98-00 |
from US $9.63 |
||
|
15
|
15
90462-10029-00
Clamp
|
90462-10029-00 |
— | ||
|
16
|
16
92014-05010-00 Bolt, Button Head |
92014-05010-00 |
from US $1.56 |
||
|
17
|
17
90430-05126-00 Gasket |
90430-05126-00 |
from US $1.94 |
||
|
18
|
18
5YU-15417-00-00
Cover, Cap
|
5YU-15417-00-00 |
— | ||
|
19
|
19
93210-36769-00 O-Ring |
93210-36769-00 |
from US $4.72 |
||
|
20
|
20
901-10063-10-00 Bolt, Hexagon Socket Head |
901-10063-10-00 |
from US $1.56 |
||
