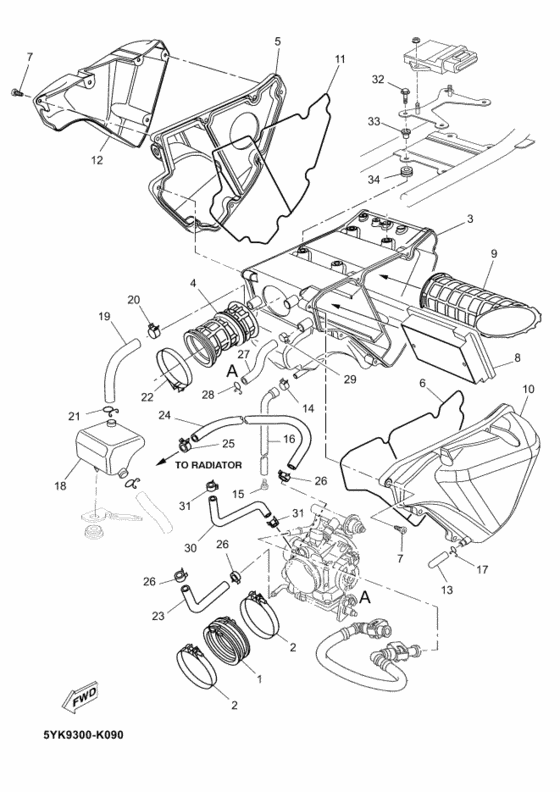

Intake Diagram Yamaha MT03 MT-03
- Year
- 2012
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 2BF1
- Sales region
- Europe (010)
- Engine Capacity
- 660
- Color Variant
- A
- Model
- MT03
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VK-E3586-10-00 Joint, Carburetor 1 |
5VK-E3586-10-00 |
US $18.86 |
||
|
2
|
2
90450-72003-00 Hose Clamp Assy |
90450-72003-00 |
from US $8.76 |
||
|
3
|
3
5YK-E4411-00-00
Case, Air Cleaner 1
|
5YK-E4411-00-00 |
— | ||
|
4
|
4
5YK-E4453-00-00
Joint, Air Cleaner 1
|
5YK-E4453-00-00 |
— | ||
|
5
|
5
5YK-E441A-00-00
Cover, Cleaner Case 1
|
5YK-E441A-00-00 |
— | ||
|
6
|
6
5YK-E4452-00-00
Seal
|
5YK-E4452-00-00 |
— | ||
|
7
|
7
9770M-50030-00 Screw, Tapping |
9770M-50030-00 |
US $1.56 |
||
|
8
|
8
5VK-E4451-00-00 Element, Air Cleaner |
5VK-E4451-00-00 |
US $39.38 |
||
|
9
|
9
5YK-E4437-00-00
Duct
|
5YK-E4437-00-00 |
— | ||
|
10
|
10
5YK-E441E-00-00
Cover, Cleaner Case 2
|
5YK-E441E-00-00 |
— | ||
|
11
|
11
5YK-E4457-00-00
Seal
|
5YK-E4457-00-00 |
— | ||
|
12
|
12
5YK-E4422-00-00
Cap, Cleaner Case 2
|
5YK-E4422-00-00 |
— | ||
|
13
|
13
5VK-E443E-00-00
Pipe, Drain
|
5VK-E443E-00-00 |
— | ||
|
14
|
14
90467-12085-00 Clip |
90467-12085-00 |
from US $4.86 |
||
|
15
|
15
90338-08801-00
Plug
|
90338-08801-00 |
— | ||
|
16
|
16
5LW-E443E-00-00
Pipe, Drain
|
5LW-E443E-00-00 |
— | ||
|
17
|
17
90467-12800-00 Clip |
90467-12800-00 |
from US $1.40 |
||
| replacement | |||||
|
17
|
17
904-67128-08-00 Clip |
904-67128-08-00 |
from US $1.28 |
||
|
18
|
18
5YK-E5371-00-00
Breather
|
5YK-E5371-00-00 |
— | ||
|
19
|
19
5YK-E1167-00-00
Pipe, Breather 2
|
5YK-E1167-00-00 |
— | ||
|
20
|
20
90467-17801-00 Clip |
90467-17801-00 |
US $1.28 |
||
|
21
|
21
90467-14800-00 Clip |
90467-14800-00 |
US $1.84 |
||
|
22
|
22
90450-59001-00 Hose Clamp Assy |
90450-59001-00 |
from US $9.58 |
||
| replacement | |||||
|
22
|
22
90450-59005-00 Hose Clamp Assy |
90450-59005-00 |
from US $12.61 |
||
|
23
|
23
5YK-E243A-10-00
Hose 1
|
5YK-E243A-10-00 |
— | ||
|
24
|
24
5YK-E244G-00-00
Hose, 4
|
5YK-E244G-00-00 |
— | ||
|
25
|
25
90467-11090-00 Clip |
90467-11090-00 |
from US $1.39 |
||
| replacement | |||||
|
25
|
25
90467-10135-00 Clip |
90467-10135-00 |
from US $1.39 |
||
|
26
|
26
90467-11108-00 Clip, Scissor |
90467-11108-00 |
from US $1.28 |
||
| replacement | |||||
|
26
|
26
90467-10135-00 Clip |
90467-10135-00 |
from US $1.39 |
||
|
27
|
27
5VK-E3545-10-00
Hose 1
|
5VK-E3545-10-00 |
— | ||
|
28
|
28
90467-170A2-00 Clip |
90467-170A2-00 |
from US $1.84 |
||
|
29
|
29
90467-17128-00 Clip |
90467-17128-00 |
from US $1.28 |
||
|
30
|
30
5YK-13542-00-00
Hose, Vacuum Sensing 1
|
5YK-13542-00-00 |
— | ||
|
31
|
31
90467-07138-00 Clip |
90467-07138-00 |
from US $1.04 |
||
|
32
|
32
9581M-06020-00
Bolt, Flange
|
9581M-06020-00 |
— | ||
|
33
|
33
90387-07037-00 Collar |
90387-07037-00 |
from US $3.54 |
||
|
34
|
34
90480-18276-00 Grommet |
90480-18276-00 |
from US $1.56 |
||
