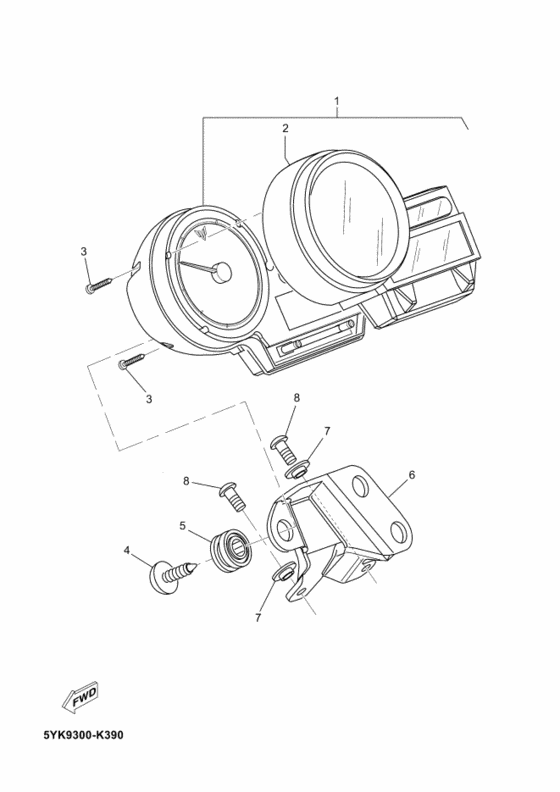

Meter Diagram Yamaha MT03 MT-03
- Year
- 2012
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 2BF1
- Sales region
- Europe (010)
- Engine Capacity
- 660
- Color Variant
- B
- Model
- MT03
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5YK-H3500-01-00
Meter Assy
|
5YK-H3500-01-00 |
— | ||
|
2
|
2
5YK-H353E-00-00
Case, Meter Upper
|
5YK-H353E-00-00 |
— | ||
|
3
|
3
5YK-H3616-00-00
Screw, Tapping
|
5YK-H3616-00-00 |
— | ||
|
4
|
4
901-64050-14-00
Screw, Tapping
|
901-64050-14-00 |
— | ||
| replacement | |||||
|
4
|
4
901-64050-01-00 Screw, Tapping |
901-64050-01-00 |
from US $1.81 |
||
|
5
|
5
5CH-H3523-00-00
Damper
|
5CH-H3523-00-00 |
— | ||
|
6
|
6
5YK-H3519-00-00
Bracket, Meter
|
5YK-H3519-00-00 |
— | ||
|
7
|
7
90387-06X02-00
Collar
|
90387-06X02-00 |
— | ||
|
8
|
8
9201M-06014-00
Bolt, Button Head
|
9201M-06014-00 |
— | ||
