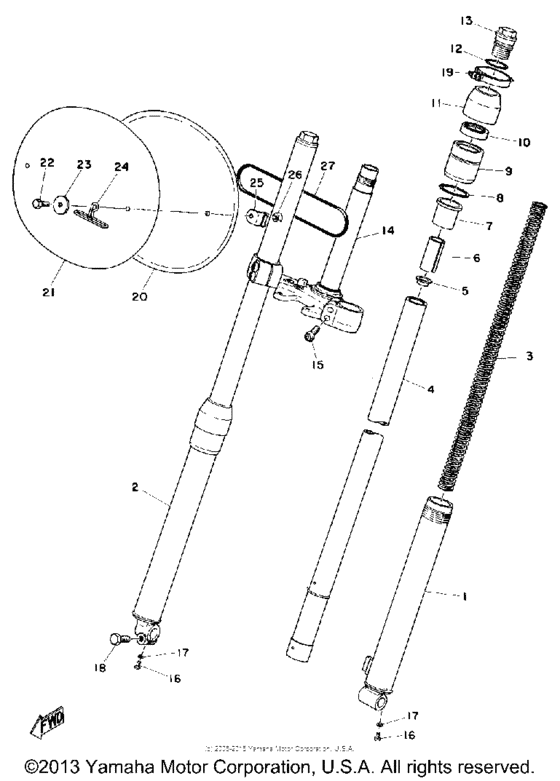

Front fork Diagram Yamaha MX
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 100
- Model
- MX100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
427-23101-00-00
Front Fork Assembly
|
427-23101-00-00 |
— | ||
|
1
|
1
304-23126-50-93
Tube, Outer 1
M4-044 |
304-23126-50-93 |
— | ||
|
2
|
2
304-23136-50-93
Tube, Outer 2
M4-044 |
304-23136-50-93 |
— | ||
|
3
|
3
525-23141-01-00
Spring, Front Fork
|
525-23141-01-00 |
— | ||
|
4
|
4
304-23124-50-00
Tube, Inner 1
|
304-23124-50-00 |
— | ||
|
5
|
5
256-23142-60-00
Seat, Spring Upper
|
256-23142-60-00 |
— | ||
|
6
|
6
256-23118-60-00
Spacer
|
256-23118-60-00 |
— | ||
|
7
|
7
137-23125-01-00
Metal, Slide 1
|
137-23125-01-00 |
— | ||
|
8
|
8
137-23147-00-00
O-Ring
|
137-23147-00-00 |
— | ||
|
9
|
9
193-23100-40-33
Front Fork Assembly
|
193-23100-40-33 |
— | ||
|
10
|
10
137-23145-01-00 Oil Seal |
137-23145-01-00 |
from US $47.66 |
||
|
11
|
11
248-23144-00-00 Seal, Dust |
248-23144-00-00 |
from US $35.20 |
||
|
12
|
12
146-23114-00-00 Packing |
146-23114-00-00 |
from US $13.74 |
||
|
13
|
13
2K5-23111-00-00
Bolt, Cap
|
2K5-23111-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
427-23340-00-33
Under Bracket
|
427-23340-00-33 |
— | ||
|
15
|
15
18G-23128-00-00 Bolt, With Washer |
18G-23128-00-00 |
from US $7.37 |
||
|
16
|
16
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
17
|
17
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
18
|
18
J60-23346-00-00
Bolt 1 (90119-08011)
90119-08011 |
J60-23346-00-00 |
— | ||
|
19
|
19
904-60500-14-00
Clamp, Hose
|
904-60500-14-00 |
— | ||
|
20
|
20
322-23485-00-00
Plate, Number
|
322-23485-00-00 |
— | ||
|
21
|
21
322-23395-00-00
Emblem
|
322-23395-00-00 |
— | ||
|
22
|
22
901-46060-07-00
Screw, Oval Flstr (322-23396-00
322-23396-00 |
901-46060-07-00 |
— | ||
|
23
|
23
902-01060-73-00
Washer, Plate
|
902-01060-73-00 |
— | ||
| replacement | |||||
|
23
|
23
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
24
|
24
322-23319-00-00
Holder, Cable 2
|
322-23319-00-00 |
— | ||
|
25
|
25
318-23487-00-00
Stay, Plate
|
318-23487-00-00 |
— | ||
|
26
|
26
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
27
|
27
93210-99103-00 O-Ring |
93210-99103-00 |
from US $6.38 |
||
