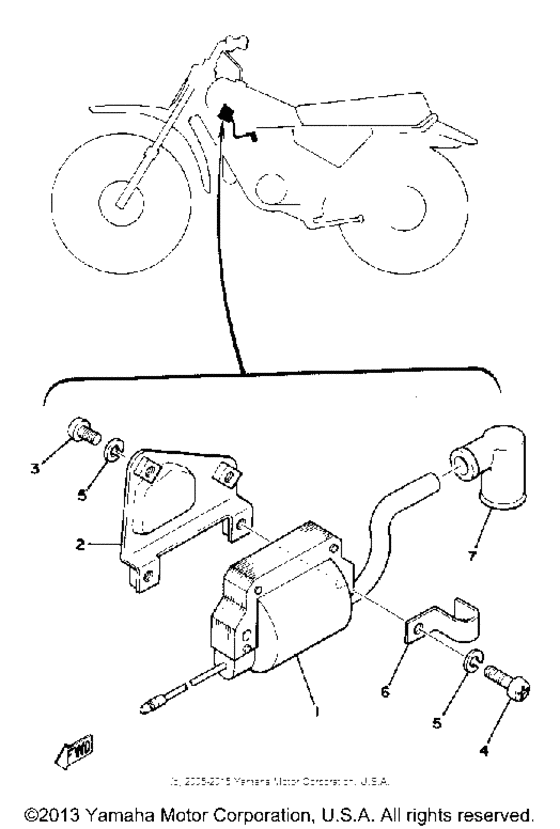

Electrical Diagram Yamaha MX
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 100
- Model
- MX100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5G4-82310-40-00 Ignition Coil Assembly |
5G4-82310-40-00 |
from US $163.03 |
||
| replacement | |||||
|
1
|
1
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
2
|
2
336-82316-01-00
Bracket, Ignition Coil
|
336-82316-01-00 |
— | ||
|
3
|
3
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
3
|
3
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
4
|
4
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
4
|
4
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
|
7
|
7
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
7
|
7
ACC-01100-60-00
Mx100 Lighting Kit
|
ACC-01100-60-00 |
— | ||
