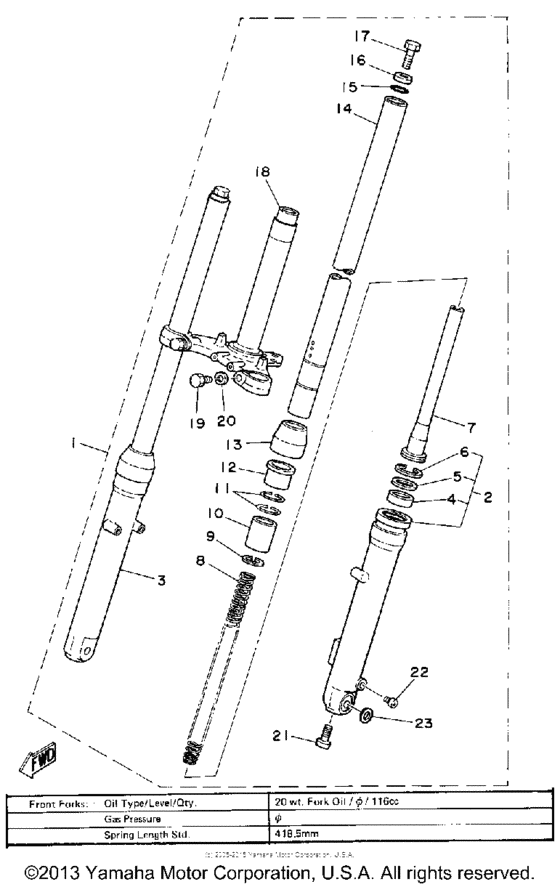

Front fork Diagram Yamaha MX
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 100
- Model
- MX100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T9-23101-00-00
Front Fork Assembly
|
1T9-23101-00-00 |
— | ||
|
2
|
2
1T9-23126-00-35
Tube, Outer (Left)
|
1T9-23126-00-35 |
— | ||
|
3
|
3
462-23136-02-35
Tube, Outer 2
SILVER |
462-23136-02-35 |
— | ||
|
4
|
4
462-23145-02-00 Oil Seal (5R6)5R6 |
462-23145-02-00 |
from US $12.04 |
||
| replacement | |||||
|
4
|
4
93110-27010-00 Oil Seal5R6 |
93110-27010-00 |
from US $12.04 |
||
|
5
|
5
462-23146-02-00
Washer, Oil Seal
|
462-23146-02-00 |
— | ||
|
6
|
6
462-23156-02-00
Clip, Oil Seal
|
462-23156-02-00 |
— | ||
|
7
|
7
462-23170-02-00
Cylinder Comp., Front Fork
|
462-23170-02-00 |
— | ||
|
8
|
8
1T9-23141-00-00
Spring, Front Fork
|
1T9-23141-00-00 |
— | ||
|
9
|
9
462-23183-02-00 Circlip |
462-23183-02-00 |
US $7.56 |
||
|
10
|
10
462-23171-02-00
Piston, Front Fork
|
462-23171-02-00 |
— | ||
|
11
|
11
462-23157-02-00
Ring, Piston
|
462-23157-02-00 |
— | ||
|
12
|
12
462-23125-02-00
Metal, Slide 1
|
462-23125-02-00 |
— | ||
|
13
|
13
462-23144-02-00
Seal, Dust
|
462-23144-02-00 |
— | ||
|
14
|
14
1T9-23124-00-00
Tube, Inner 1
|
1T9-23124-00-00 |
— | ||
| replacement | |||||
|
14
|
14
3UL-23124-00-00
Tube, Inner 1
|
3UL-23124-00-00 |
— | ||
|
15
|
15
462-23114-02-00
Gasket
|
462-23114-02-00 |
— | ||
|
16
|
16
276-23112-50-00
Washer, Cap
|
276-23112-50-00 |
— | ||
|
17
|
17
205-23111-40-00 Bolt, Cap |
205-23111-40-00 |
from US $11.65 |
||
|
18
|
18
1T9-23340-00-90 Under Bracket CompUnder bracket comp. |
1T9-23340-00-90 |
US $331.43 |
||
|
19
|
19
97013-10030-00 Bolt (8J7)8J7 97303-10030-00 |
97013-10030-00 |
from US $10.06 |
||
|
20
|
20
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.36 |
||
|
21
|
21
98580-06025-00 Screw, Pan Head |
98580-06025-00 |
US $1.07 |
||
| replacement | |||||
|
21
|
21
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
22
|
22
451-23119-01-00
Plug, Drain
|
451-23119-01-00 |
— | ||
|
23
|
23
462-23392-02-00 Washer, Special |
462-23392-02-00 |
US $5.83 |
||
