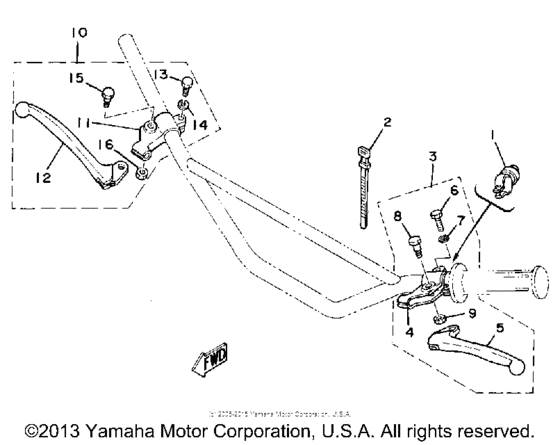

Handle switch & lever Diagram Yamaha MX
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 100
- Model
- MX100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3M1-83976-00-00
Switch, Handle 1
|
3M1-83976-00-00 |
— | ||
|
2
|
2
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
3
|
3
214-82910-06-00
Lever Holder Assembly 1
|
214-82910-06-00 |
— | ||
|
4
|
4
214-82911-01-00 Holder, Lever 1 |
214-82911-01-00 |
from US $41.72 |
||
|
5
|
5
214-83912-00-00 Lever 1 |
214-83912-00-00 |
from US $10.10 |
||
|
6
|
6
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
6
|
6
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
8
|
8
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
9
|
9
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
10
|
10
233-82920-34-00
Lever Holder Assembly 2
|
233-82920-34-00 |
— | ||
|
11
|
11
233-82921-31-00 Holder, Lever 2 |
233-82921-31-00 |
from US $68.11 |
||
|
12
|
12
233-83922-30-00 Lever RLever 2 |
233-83922-30-00 |
from US $14.37 |
||
|
13
|
13
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
13
|
13
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
15
|
15
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
16
|
16
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
