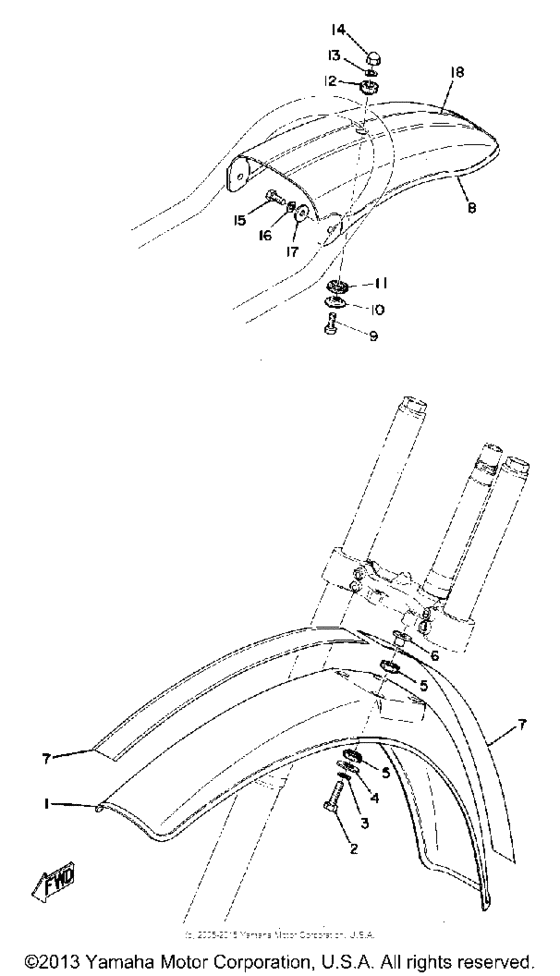

Front fender - rear fender Diagram Yamaha MX
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 125
- Model
- MX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
453-21511-01-00
Fender, Front
|
453-21511-01-00 |
— | ||
|
2
|
2
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
2
|
2
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
4
|
4
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
5
|
5
322-21541-00-00 Damper 1 |
322-21541-00-00 |
from US $4.96 |
||
|
6
|
6
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
6
|
6
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
7
|
7
402-21519-00-00
Mold, Fender
|
402-21519-00-00 |
— | ||
|
8
|
8
402-21611-00-00
Fender, Rear
|
402-21611-00-00 |
— | ||
|
8
|
8
453-21611-00-00
Fender, Rear
|
453-21611-00-00 |
— | ||
|
9
|
9
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $3.26 |
||
| replacement | |||||
|
9
|
9
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
10
|
10
902-09060-87-00
Washer, Special Shape
|
902-09060-87-00 |
— | ||
|
11
|
11
322-21639-00-00
Damper 2
|
322-21639-00-00 |
— | ||
|
12
|
12
322-21541-00-00 Damper 1 |
322-21541-00-00 |
from US $4.96 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.18 |
||
|
15
|
15
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
15
|
15
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
15
|
15
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
15
|
15
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
18
|
18
402-21619-00-00
Stripe, Rear Fender
|
402-21619-00-00 |
— | ||
