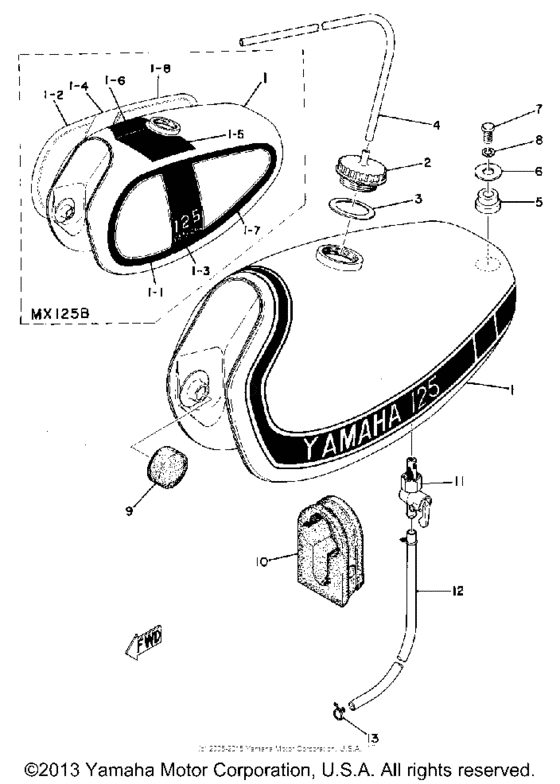

Fuel tank Diagram Yamaha MX
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 125
- Model
- MX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
401-24110-00-02
Fuel Tank
|
401-24110-00-02 |
— | ||
|
1
|
1
401-24110-00-06
Fuel Tank
|
401-24110-00-06 |
— | ||
|
1
|
1
402-24244-10-00
Graphic, Fuel Tnk 1
|
402-24244-10-00 |
— | ||
|
2
|
2
322-24611-02-00 Body, Cap |
322-24611-02-00 |
from US $48.08 |
||
|
2
|
2
402-24245-10-00
Graphic, Fuel Tnk 2
|
402-24245-10-00 |
— | ||
|
3
|
3
904-30370-52-00 Gasket (322-24612-00)322-24612-00 |
904-30370-52-00 |
from US $4.82 |
||
|
3
|
3
402-24246-11-00
Graphic, Fuel Tnk 3
|
402-24246-11-00 |
— | ||
|
4
|
4
90445-09111-00 Hose (L675) |
90445-09111-00 |
from US $19.84 |
||
| replacement | |||||
|
4
|
4
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
4
|
4
402-24247-11-00
Graphic, Fuel Tnk 4
|
402-24247-11-00 |
— | ||
|
5
|
5
90480-25189-00 Grommet |
90480-25189-00 |
from US $2.70 |
||
|
5
|
5
427-24248-10-00
Graphic, Fuel Tnk 5
|
427-24248-10-00 |
— | ||
|
6
|
6
90209-08098-00 Washer 341833480000 |
90209-08098-00 |
from US $3.47 |
||
| replacement | |||||
|
6
|
6
90209-08008-00 Washer |
90209-08008-00 |
from US $5.24 |
||
|
6
|
6
427-24249-10-00
Graphic, Fuel Tnk 6
|
427-24249-10-00 |
— | ||
|
7
|
7
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
7
|
7
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
7
|
7
402-24250-10-00
Graphic Set
|
402-24250-10-00 |
— | ||
|
8
|
8
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
8
|
8
402-24251-10-00
Strainer 1
|
402-24251-10-00 |
— | ||
|
9
|
9
278-24181-00-00
Damper, Locating 1
|
278-24181-00-00 |
— | ||
| replacement | |||||
|
9
|
9
3TB-24181-00-00 Damper, Locating 1 |
3TB-24181-00-00 |
from US $4.96 |
||
|
10
|
10
401-24183-00-00
Damper, Locating 3
|
401-24183-00-00 |
— | ||
|
11
|
11
322-24500-02-00 Fuel Cock Assembly 1 (322-24500322-24500 M5-013 |
322-24500-02-00 |
from US $97.13 |
||
|
12
|
12
904-45111-49-00 Hose |
904-45111-49-00 |
US $8.36 |
||
|
13
|
13
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
13
|
13
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.39 |
||
|
13
|
13
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
