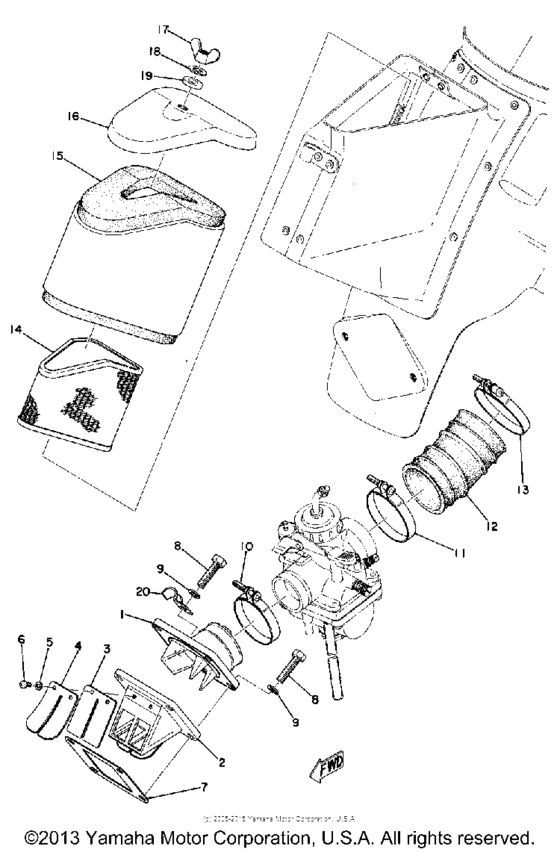

Intake Diagram Yamaha MX
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 125
- Model
- MX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
401-13565-01-00
Joint, Carburetor
|
401-13565-01-00 |
— | ||
|
2
|
2
558-13610-00-00 Reed Valve Asy |
558-13610-00-00 |
from US $276.32 |
||
| replacement | |||||
|
2
|
2
345-13610-20-00 Reed Valve Assy |
345-13610-20-00 |
from US $276.32 |
||
|
3
|
3
2R9-13613-00-00
Reed, Valve (401-13613-00)
401-13613-00 |
2R9-13613-00-00 |
— | ||
|
4
|
4
345-13616-70-00 Stopper, Reed Valve |
345-13616-70-00 |
from US $21.99 |
||
|
5
|
5
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
7
|
7
87A-13621-00-00 Gasket, Valve Seat |
87A-13621-00-00 |
from US $4.11 |
||
|
8
|
8
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.52 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
10
|
10
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
11
|
11
90460-51059-00 Clamp, Hose |
90460-51059-00 |
from US $7.65 |
||
|
12
|
12
401-14453-00-00
Joint, Air Clnr 1
|
401-14453-00-00 |
— | ||
|
13
|
13
904-60540-62-00
Band
308-14455-00 |
904-60540-62-00 |
— | ||
|
14
|
14
401-14458-00-00
Guide, Element
|
401-14458-00-00 |
— | ||
|
15
|
15
401-14451-00-00
Element, Air Clnr
|
401-14451-00-00 |
— | ||
|
16
|
16
401-14412-00-00
Cap, Cleaner Case 1
|
401-14412-00-00 |
— | ||
|
17
|
17
901-75060-04-00 Nut, Wing |
901-75060-04-00 |
from US $2.55 |
||
| replacements | |||||
|
17
|
17
90175-06015-00 Nut, Wing |
90175-06015-00 |
US $7.79 |
||
|
17
|
17
90175-06008-00 Nut, Wing |
90175-06008-00 |
from US $2.55 |
||
|
18
|
18
90202-06008-00 Washer, Plate |
90202-06008-00 |
from US $2.69 |
||
|
19
|
19
90201-06061-00 Washer, Plate |
90201-06061-00 |
from US $1.35 |
||
|
20
|
20
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
