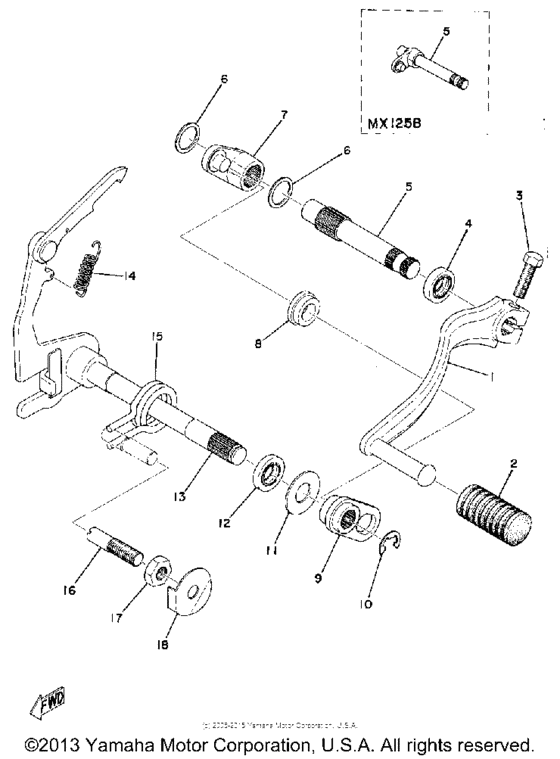

Shift shaft (2) Diagram Yamaha MX
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 125
- Model
- MX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1X0-18111-00-00
Pedal, Shift
|
1X0-18111-00-00 |
— | ||
|
2
|
2
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
|
3
|
3
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
3
|
3
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
4
|
4
93109-12012-00 Oil Seal |
93109-12012-00 |
from US $10.87 |
||
|
5
|
5
401-18155-00-00
Shaft, Shift 2
|
401-18155-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
401-18102-01-00
Shift Shaft Assembly 2
|
401-18102-01-00 |
— | ||
| replacement | |||||
|
5
|
5
401-18102-02-00
Shift Shaft Assembly 2
|
401-18102-02-00 |
— | ||
|
6
|
6
401-18334-00-00 Shim |
401-18334-00-00 |
from US $6.23 |
||
|
7
|
7
401-18151-00-00
Lever, Shift 3
|
401-18151-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
401-18178-00-00 Roller, Shift Lever |
401-18178-00-00 |
from US $9.49 |
||
|
9
|
9
401-18152-01-00 Lever, Shift 4 |
401-18152-01-00 |
from US $33.01 |
||
|
10
|
10
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.52 |
||
|
11
|
11
90201-12575-00 Washer, Plate (353) |
90201-12575-00 |
from US $1.70 |
||
|
12
|
12
931-01120-60-00 Oil Seal |
931-01120-60-00 |
from US $6.94 |
||
| replacement | |||||
|
12
|
12
931-01121-73-00 Oil Seal |
931-01121-73-00 |
from US $5.40 |
||
|
13
|
13
558-18101-00-00 Shift Shaft Assembly |
558-18101-00-00 |
from US $76.73 |
||
|
14
|
14
90506-09009-00 Spring, Tension |
90506-09009-00 |
from US $2.55 |
||
|
15
|
15
90508-32207-00 Spring, Torsion (132-18124-00)132-18124-00 |
90508-32207-00 |
from US $8.50 |
||
|
16
|
16
90149-08094-00 Screw |
90149-08094-00 |
from US $4.96 |
||
|
17
|
17
90170-08029-00 Nut, Hexagon |
90170-08029-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
90170-08193-00 Nut, Hexagon |
90170-08193-00 |
from US $1.56 |
||
|
18
|
18
90215-08014-00 Washer, Lock |
90215-08014-00 |
from US $2.55 |
||
