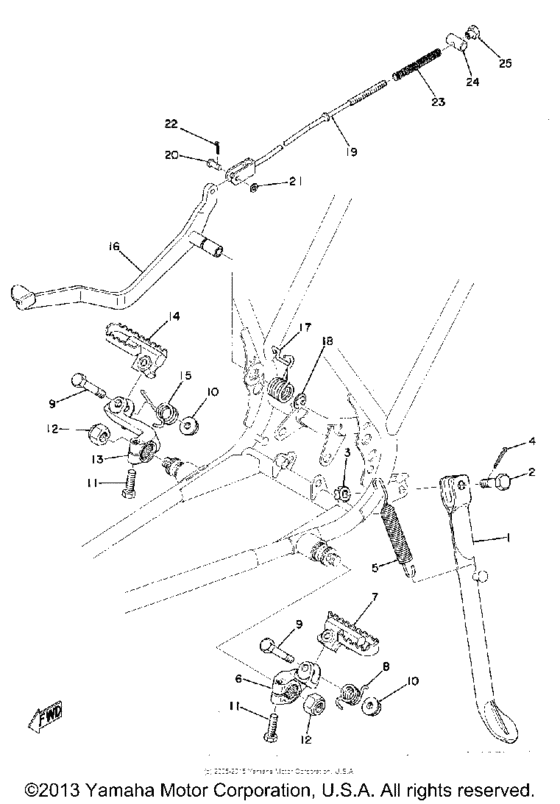

Stand - footrest - brake pedal Diagram Yamaha MX
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 125
- Model
- MX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
401-27311-00-00
Stand, Side
|
401-27311-00-00 |
— | ||
|
2
|
2
90102-10006-00 Bolt, With Hole (278-27317-00)278-27317-00 |
90102-10006-00 |
from US $8.64 |
||
|
3
|
3
90171-10012-00 Nut, Castle |
90171-10012-00 |
US $3.11 |
||
| replacement | |||||
|
3
|
3
901-71100-49-00 Nut, Castle(54G) |
901-71100-49-00 |
US $3.11 |
||
|
3
|
3
953-03109-00-00 Nut, Castle |
953-03109-00-00 |
from US $5.29 |
||
| replacement | |||||
|
3
|
3
953-07109-00-00 Nut, Castle |
953-07109-00-00 |
from US $4.11 |
||
|
4
|
4
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
5
|
5
905-07290-04-00 Spring, Tension (214-27316-00)214-27316-00 |
905-07290-04-00 |
US $8.22 |
||
| replacement | |||||
|
5
|
5
90506-26270-00 Spring, Tension (1L9)214-27316-00 |
90506-26270-00 |
from US $8.22 |
||
|
6
|
6
401-27412-00-00
Bracket, Footrest 1
|
401-27412-00-00 |
— | ||
|
7
|
7
401-27411-00-00
Footrest 1
|
401-27411-00-00 |
— | ||
|
8
|
8
905-08262-59-00
Spring, Torsion (401-27426-00)
401-27426-00 |
905-08262-59-00 |
— | ||
|
9
|
9
901-09083-76-00
Bolt (157-27416-00)
157-27416-00 |
901-09083-76-00 |
— | ||
|
9
|
9
90101-08250-00
Bolt
|
90101-08250-00 |
— | ||
|
10
|
10
95701-12500-00 P66 Nut, Flange (1Uv) |
95701-12500-00 |
from US $1.98 |
||
| replacements | |||||
|
10
|
10
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
10
|
10
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
|
11
|
11
97326-08025-00 Bolt, Hexagon (97101-08025)97101-08025 |
97326-08025-00 |
US $1.21 |
||
| replacement | |||||
|
11
|
11
97017-08025-00 Bolt97101-08025 |
97017-08025-00 |
from US $1.21 |
||
|
12
|
12
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
12
|
12
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
13
|
13
401-27422-00-00
Bracket, Footrest 2
|
401-27422-00-00 |
— | ||
|
14
|
14
401-27421-00-00
Footrest 2
|
401-27421-00-00 |
— | ||
|
15
|
15
905-08262-60-00
Spring, Torsion (401-27456-00)
401-27456-00 |
905-08262-60-00 |
— | ||
|
16
|
16
437-27211-00-33
Pedal, Brake
|
437-27211-00-33 |
— | ||
|
17
|
17
905-08401-65-00
Spring, Torsion
|
905-08401-65-00 |
— | ||
|
18
|
18
93430-10015-00 Circlip |
93430-10015-00 |
from US $2.41 |
||
|
19
|
19
248-27231-00-00
Rod, Brake
|
248-27231-00-00 |
— | ||
|
20
|
20
90240-06006-00 Pin, Clevis |
90240-06006-00 |
from US $3.68 |
||
|
21
|
21
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
22
|
22
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
22
|
22
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
23
|
23
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.81 |
||
|
24
|
24
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
25
|
25
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
