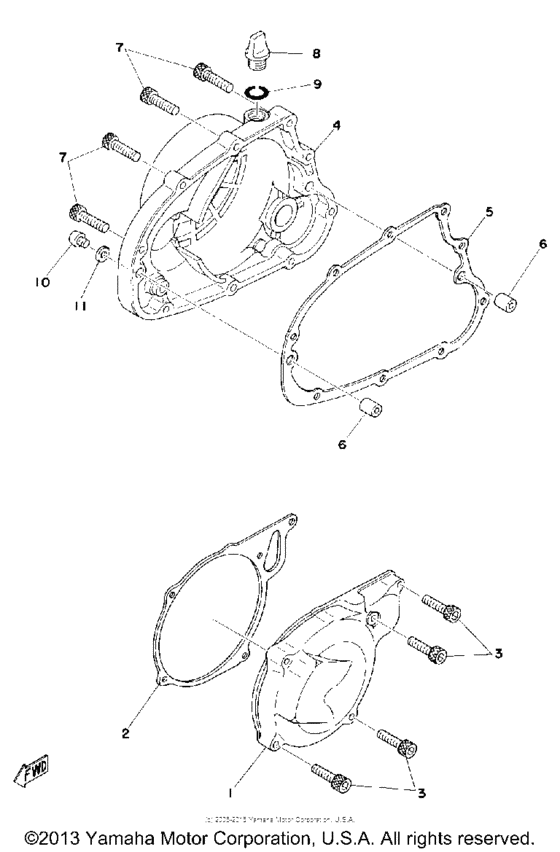

Crankcase cover Diagram Yamaha MX
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 125
- Model
- MX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3V3-15411-00-00
Cover, Crankcase L
|
3V3-15411-00-00 |
— | ||
|
2
|
2
537-15455-00-00
Gasket 1
|
537-15455-00-00 |
— | ||
| replacement | |||||
|
2
|
2
537-15455-10-00
CLUTCH ASY
|
537-15455-10-00 |
— | ||
|
3
|
3
90110-06138-00 Bolt |
90110-06138-00 |
from US $1.12 |
||
|
4
|
4
537-15431-01-00
Cover, Crankcase 3
|
537-15431-01-00 |
— | ||
|
5
|
5
537-15451-00-00 Gasket, Crcs Cover |
537-15451-00-00 |
US $17.78 |
||
| replacement | |||||
|
5
|
5
537-15451-01-00 PRI DRVN GEAR |
537-15451-01-00 |
US $17.78 |
||
|
6
|
6
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
6
|
6
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
6
|
6
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
7
|
7
90110-06138-00 Bolt |
90110-06138-00 |
from US $1.12 |
||
|
8
|
8
1G8-15362-00-00 Plug, Oil Level |
1G8-15362-00-00 |
US $18.22 |
||
|
9
|
9
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
9
|
9
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.39 |
||
|
10
|
10
98506-06008-00 Screw |
98506-06008-00 |
from US $2.41 |
||
| replacement | |||||
|
10
|
10
98517-06008-00 Screw |
98517-06008-00 |
from US $1.70 |
||
|
11
|
11
90430-06016-00 Gasket |
90430-06016-00 |
from US $2.77 |
||
