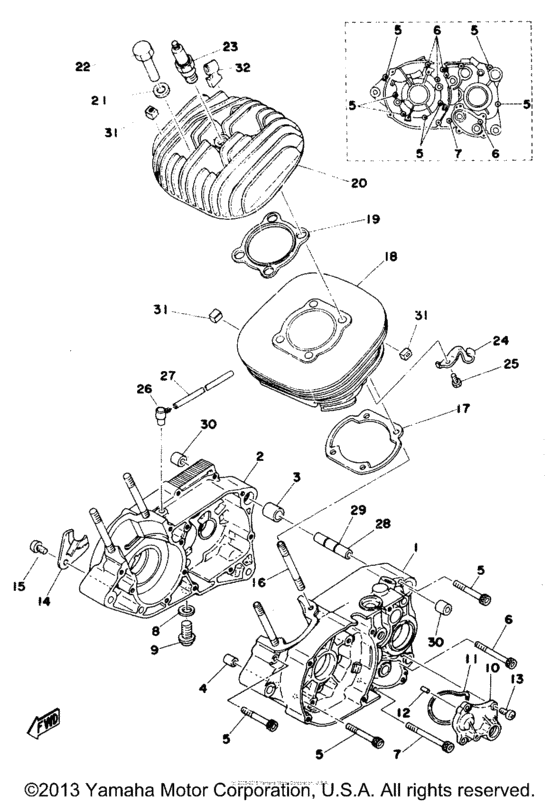

Crankcase & cylinder Diagram Yamaha MX
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 125
- Model
- MX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
537-15111-00-00
No Longer Available
|
537-15111-00-00 |
— | ||
|
2
|
2
537-15121-00-00
No Longer Available
|
537-15121-00-00 |
— | ||
|
3
|
3
995-10200-20-00
Pin, Dowel
|
995-10200-20-00 |
— | ||
| replacement | |||||
|
3
|
3
995-30200-20-00 Pin, Dowel |
995-30200-20-00 |
US $2.13 |
||
|
4
|
4
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
4
|
4
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
4
|
4
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
5
|
5
913-16060-50-00
Bolt
|
913-16060-50-00 |
— | ||
| replacement | |||||
|
5
|
5
91317-06050-00 Bolt |
91317-06050-00 |
from US $1.18 |
||
|
6
|
6
913-16060-60-00
Bolt
|
913-16060-60-00 |
— | ||
| replacement | |||||
|
6
|
6
91317-06060-00 Bolt |
91317-06060-00 |
from US $1.42 |
||
|
7
|
7
913-16060-70-00
Bolt
|
913-16060-70-00 |
— | ||
| replacement | |||||
|
7
|
7
91317-06070-00 Bolt |
91317-06070-00 |
from US $1.50 |
||
|
8
|
8
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
|
9
|
9
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
10
|
10
401-15419-01-00
Cover, Shifter 1
|
401-15419-01-00 |
— | ||
|
11
|
11
401-15449-00-00 Ring, Rubber |
401-15449-00-00 |
from US $18.84 |
||
|
12
|
12
93603-12007-00 Pin, Dowel |
93603-12007-00 |
from US $1.94 |
||
|
13
|
13
98506-06014-00 Screw Pan Head |
98506-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
14
|
14
304-15128-00-00 Holder |
304-15128-00-00 |
from US $7.93 |
||
|
15
|
15
92501-08010-00 Screw, Pan Head |
92501-08010-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
98507-08010-00 Screw, Pan Head |
98507-08010-00 |
from US $1.56 |
||
|
16
|
16
90116-08064-00 Bolt, Stud |
90116-08064-00 |
from US $4.04 |
||
|
17
|
17
248-11351-00-00 Gasket, Cylinder |
248-11351-00-00 |
from US $8.78 |
||
| replacement | |||||
|
17
|
17
1WE-11351-00-00 Gasket, Cylinder |
1WE-11351-00-00 |
from US $6.76 |
||
|
18
|
18
1G8-11311-00-00
Cylinder 1
|
1G8-11311-00-00 |
— | ||
|
19
|
19
248-11181-00-00 Gasket, Cylinder Head 1 |
248-11181-00-00 |
from US $16.43 |
||
|
20
|
20
565-11111-00-00
Head, Cylinder 1
|
565-11111-00-00 |
— | ||
|
21
|
21
90201-12362-00 Washer, Plate |
90201-12362-00 |
from US $1.70 |
||
|
22
|
22
901-79083-03-00 Nut |
901-79083-03-00 |
from US $7.65 |
||
|
23
|
23
NGK-B9EV0-00-00 Br9Eix Ngk 4Pk4PK |
NGK-B9EV0-00-00 |
US $14.83 |
||
| replacement | |||||
|
23
|
23
BR9-EIX00-00-00 BR9EIX NGK 4PK4PK |
BR9-EIX00-00-00 |
from US $42.42 |
||
|
24
|
24
525-15441-01-00
Holder, Clutch Cable
|
525-15441-01-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
25
|
25
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
26
|
26
583-15371-00-00 Breather |
583-15371-00-00 |
from US $1.70 |
||
|
27
|
27
90445-07177-00 Hose |
90445-07177-00 |
US $4.39 |
||
| replacement | |||||
|
27
|
27
90445-07MF1-00 Hose (L570) |
90445-07MF1-00 |
from US $4.39 |
||
|
28
|
28
401-15317-00-00 Spacer, Engine Mount |
401-15317-00-00 |
from US $11.76 |
||
|
29
|
29
93210-11073-00 O-Ring |
93210-11073-00 |
from US $1.81 |
||
|
30
|
30
328-15316-00-00
Damper, Engine Mount 1 (328-153)
328-153 |
328-15316-00-00 |
— | ||
| replacement | |||||
|
30
|
30
90388-08003-00 Damper328-153 |
90388-08003-00 |
from US $21.44 |
||
|
31
|
31
521-11161-01-00 Absorber 1 |
521-11161-01-00 |
from US $7.37 |
||
|
32
|
32
434-11161-00-00 Absorber 1 |
434-11161-00-00 |
from US $6.23 |
||
