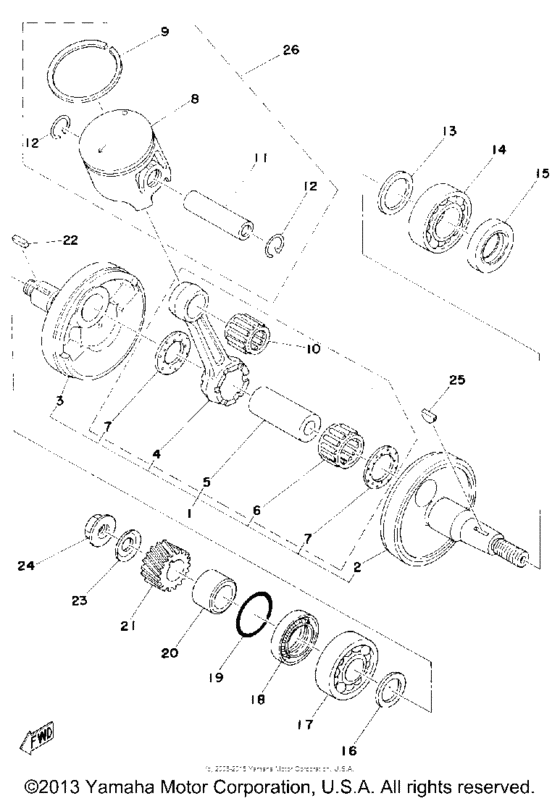

Crankshaft & Piston Diagram Yamaha MX
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 125
- Model
- MX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1G8-11400-01-00
Crankshaft Assembly
|
1G8-11400-01-00 |
— | ||
|
2
|
2
1W1-11412-01-00 Crank 1 |
1W1-11412-01-00 |
from US $157.50 |
||
|
3
|
3
525-11422-00-00
Crank 2
|
525-11422-00-00 |
— | ||
|
4
|
4
3R2-11651-01-00
Rod, Connecting
|
3R2-11651-01-00 |
— | ||
|
5
|
5
3M5-11681-00-00 Pin, Crank 1 |
3M5-11681-00-00 |
from US $9.78 |
||
|
6
|
6
933-10422-C8-00 Bearing, Cylinder |
933-10422-C8-00 |
from US $25.92 |
||
|
7
|
7
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $4.38 |
||
|
8
|
8
537-11631-02-96
Piston Std
|
537-11631-02-96 |
— | ||
|
8
|
8
537-11638-02-00
Piston 4 O/s 1.00
O/S 1.00 ALTERNATE PARTS |
537-11638-02-00 |
— | ||
|
8
|
8
537-11637-02-00
Piston 3 O/s 0.75
O/S 0.75 ALTERNATE PARTS |
537-11637-02-00 |
— | ||
|
8
|
8
537-11636-02-00
Piston 2 O/s 0.50
O/S 0.50 ALTERNATE PARTS |
537-11636-02-00 |
— | ||
|
8
|
8
537-11635-02-00
Piston 1 O/s 0.25
O/S 0.25 ALTERNATE PARTS |
537-11635-02-00 |
— | ||
|
9
|
9
401-11611-01-00
Ring, Piston Std
|
401-11611-01-00 |
— | ||
|
9
|
9
401-11611-11-00
Ring, Piston 1St
1ST ALTERNATE PARTS |
401-11611-11-00 |
— | ||
|
9
|
9
401-11611-21-00
Ring, Piston 2Nd
2ND ALTERNATE PARTS |
401-11611-21-00 |
— | ||
|
9
|
9
401-11611-41-00
Ring, Piston 4Th
4TH ALTERNATE PARTS |
401-11611-41-00 |
— | ||
|
9
|
9
401-11611-31-00
Ring, Piston 3Rd
3RD ALTERNATE PARTS |
401-11611-31-00 |
— | ||
|
10
|
10
933-10216-L2-00 Bearing, Cylindrical |
933-10216-L2-00 |
from US $28.57 |
||
|
11
|
11
137-11633-00-00
Pin, Piston
|
137-11633-00-00 |
— | ||
| replacement | |||||
|
11
|
11
137-11633-10-00 Pin, Piston |
137-11633-10-00 |
from US $18.22 |
||
|
12
|
12
93450-17025-00 Circlip |
93450-17025-00 |
from US $1.70 |
||
|
13
|
13
132-11561-00-03
Shim, Crank 1
U.R. |
132-11561-00-03 |
— | ||
|
13
|
13
132-11561-00-05
Shim, Crank 1
U.R. |
132-11561-00-05 |
— | ||
|
14
|
14
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $17.18 |
||
|
15
|
15
931-03251-25-00 Oil Seal, Sw-Type |
931-03251-25-00 |
from US $13.03 |
||
|
16
|
16
136-11561-00-04
Shim, Crank 1
U.R. |
136-11561-00-04 |
— | ||
|
16
|
16
136-11561-00-03
Shim, Crank 1
U.R. |
136-11561-00-03 |
— | ||
|
16
|
16
136-11561-00-05
Shim, Crank 1
U.R. |
136-11561-00-05 |
— | ||
|
16
|
16
136-11561-00-06
Shim, Crank 1
U.R. |
136-11561-00-06 |
— | ||
|
16
|
16
136-11561-00-07
Shim, Crank 1
U.R. |
136-11561-00-07 |
— | ||
|
16
|
16
136-11561-00-08
Shim, Crank 1
U.R. |
136-11561-00-08 |
— | ||
|
17
|
17
93306-30421-00 Bearing |
93306-30421-00 |
from US $31.91 |
||
| replacement | |||||
|
17
|
17
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $25.80 |
||
|
18
|
18
93103-28011-00 Oil Seal, Sw-Type (93103-28100)93103-28100 |
93103-28011-00 |
from US $6.40 |
||
|
19
|
19
93210-180A6-00 O-Ring |
93210-180A6-00 |
from US $3.14 |
||
|
20
|
20
90387-20488-00 Collar |
90387-20488-00 |
from US $13.46 |
||
|
21
|
21
525-16111-00-00
Gear, Pri Drive
|
525-16111-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
90282-05005-00 Key, Straight |
90282-05005-00 |
from US $1.70 |
||
|
23
|
23
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
US $1.70 |
||
| replacement | |||||
|
23
|
23
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $1.04 |
||
|
24
|
24
901-79122-44-00
Nut
|
901-79122-44-00 |
— | ||
| replacement | |||||
|
24
|
24
90179-12659-00 Nut |
90179-12659-00 |
from US $1.81 |
||
|
25
|
25
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
26
|
26
1G8-11630-00-00
Piston Kit Std
|
1G8-11630-00-00 |
— | ||
|
26
|
26
1G8-11630-10-00
Piston Kit 1St
1ST ALTERNATE PARTS |
1G8-11630-10-00 |
— | ||
|
26
|
26
1G8-11630-20-00
Piston Kit 2Nd
2ND |
1G8-11630-20-00 |
— | ||
|
26
|
26
1G8-11630-30-00
Piston Kit 3Rd
3RD ALTERNATE PARTS |
1G8-11630-30-00 |
— | ||
|
26
|
26
1G8-11630-40-00
Piston Kit 4Th
4TH ALTERNATE PARTS |
1G8-11630-40-00 |
— | ||
