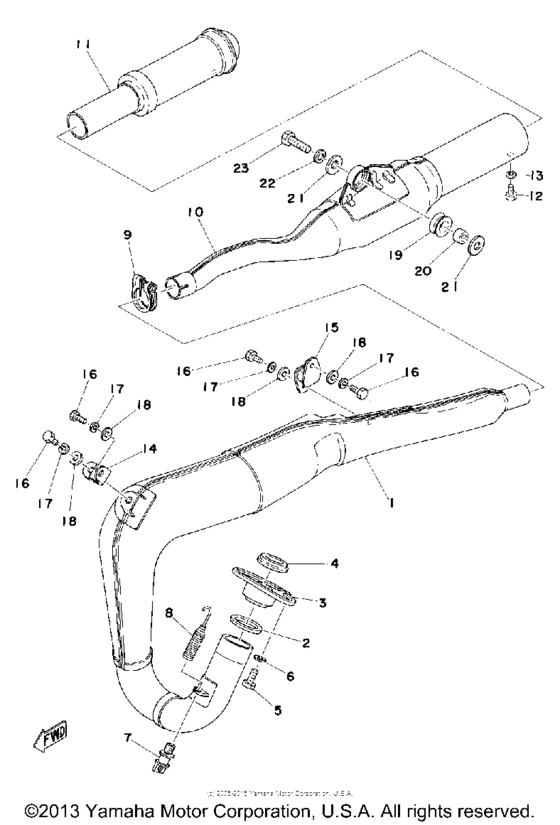

Exhaust Diagram Yamaha MX
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 125
- Model
- MX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
565-14610-01-00
Exhaust Pipe Assembly L
|
565-14610-01-00 |
— | ||
|
2
|
2
248-14623-00-00
Gasket
|
248-14623-00-00 |
— | ||
| replacement | |||||
|
2
|
2
248-14623-10-00 Gasket |
248-14623-10-00 |
from US $7.37 |
||
|
3
|
3
2K5-14612-00-00
Nut, Ring
|
2K5-14612-00-00 |
— | ||
|
4
|
4
152-14613-00-00
Gasket, Exhaust Pipe
|
152-14613-00-00 |
— | ||
| replacement | |||||
|
4
|
4
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.98 |
||
|
5
|
5
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
5
|
5
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
5
|
5
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
409-14684-00-00
Bolt, Hook
|
409-14684-00-00 |
— | ||
|
8
|
8
905-07200-12-00
Spring, Tension (145-14683-00)
145-14683-00 |
905-07200-12-00 |
— | ||
|
9
|
9
537-14788-00-00
Band, Silencer
|
537-14788-00-00 |
— | ||
|
10
|
10
565-14753-00-00
Silencer, Exhaust
|
565-14753-00-00 |
— | ||
|
11
|
11
565-14752-00-00
Pipe, Outlet
|
565-14752-00-00 |
— | ||
|
12
|
12
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
537-14771-01-00
Stay, Muffler 1
|
537-14771-01-00 |
— | ||
|
15
|
15
565-14771-00-00 Stay, Muffler 1 |
565-14771-00-00 |
from US $33.58 |
||
| replacement | |||||
|
15
|
15
565-14771-01-00 Stay, Muffler 1 |
565-14771-01-00 |
from US $20.34 |
||
|
16
|
16
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
16
|
16
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
90201-07081-00 Washer, Plate |
90201-07081-00 |
from US $1.28 |
||
|
19
|
19
565-14747-00-00 Damper, Muffler |
565-14747-00-00 |
from US $8.78 |
||
|
20
|
20
903-87082-58-00 Collar |
903-87082-58-00 |
from US $3.40 |
||
|
21
|
21
90201-08753-00 Washer, Plate |
90201-08753-00 |
US $2.22 |
||
| replacement | |||||
|
21
|
21
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $2.22 |
||
|
22
|
22
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
23
|
23
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
23
|
23
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
23
|
23
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
23
|
23
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
