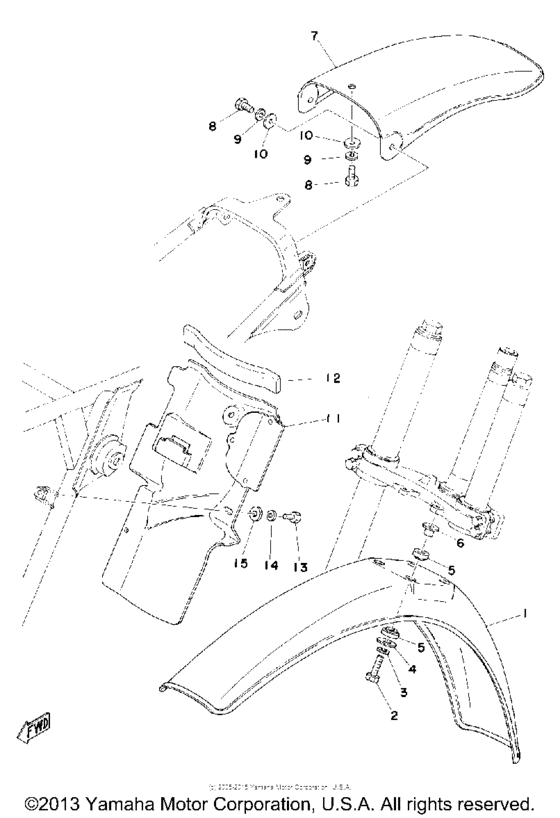

Front fender - rear fender Diagram Yamaha MX
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 125
- Model
- MX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
453-21511-01-00
Fender, Front
|
453-21511-01-00 |
— | ||
|
2
|
2
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
2
|
2
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
2
|
2
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
4
|
4
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
5
|
5
322-21541-00-00 Damper 1 |
322-21541-00-00 |
from US $4.96 |
||
|
6
|
6
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
6
|
6
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
7
|
7
537-21611-10-00
Fender, Rear
|
537-21611-10-00 |
— | ||
|
8
|
8
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
8
|
8
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
8
|
8
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
10
|
10
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
11
|
11
565-21620-01-00
Guard, Mud
|
565-21620-01-00 |
— | ||
|
12
|
12
565-21746-00-00
Damper
|
565-21746-00-00 |
— | ||
|
13
|
13
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
13
|
13
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
13
|
13
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
15
|
15
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
