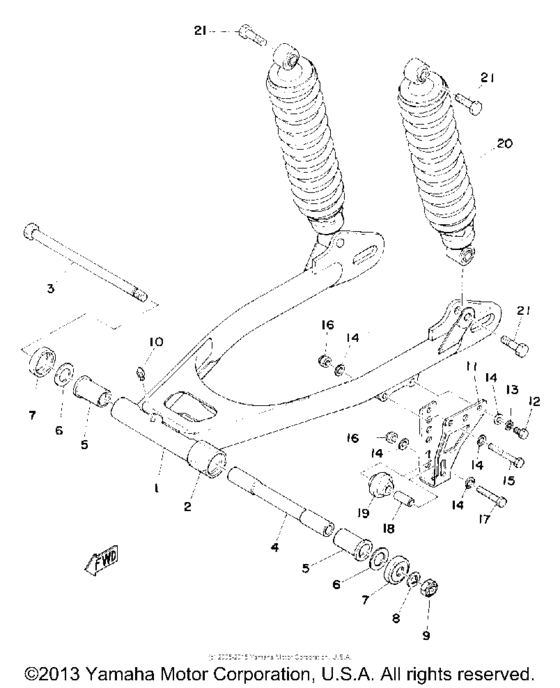

Rear arm - rear cushion Diagram Yamaha MX
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 125
- Model
- MX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
565-22110-00-33
No Longer Available
|
565-22110-00-33 |
— | ||
|
2
|
2
443-22151-00-00
Seal, Guard
|
443-22151-00-00 |
— | ||
|
3
|
3
537-22141-01-00
Shaft, Pivot
|
537-22141-01-00 |
— | ||
|
4
|
4
18G-22124-00-00 Bush 2 |
18G-22124-00-00 |
from US $25.64 |
||
|
5
|
5
90386-18028-00 Bush |
90386-18028-00 |
from US $8.76 |
||
|
6
|
6
401-22127-00-00 Shim |
401-22127-00-00 |
from US $3.12 |
||
|
7
|
7
401-22128-01-00 Cover, Thrust 1 |
401-22128-01-00 |
from US $8.42 |
||
|
8
|
8
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
9
|
9
90185-12046-00 Nut, Self-Locking |
90185-12046-00 |
from US $6.38 |
||
| replacement | |||||
|
9
|
9
90185-12134-00 Nut, Self-Locking |
90185-12134-00 |
from US $6.94 |
||
|
10
|
10
937-00060-05-00 Nipple, Grease |
937-00060-05-00 |
from US $5.17 |
||
|
11
|
11
401-22153-00-33
Guard, Chain
|
401-22153-00-33 |
— | ||
|
12
|
12
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
15
|
15
97313-06055-00 Bolt,w Wash |
97313-06055-00 |
from US $4.11 |
||
| replacements | |||||
|
15
|
15
97595-06555-00 Bolt, With Washer |
97595-06555-00 |
from US $4.11 |
||
|
15
|
15
97E95-06555-00 Bolt, Hexagon W/w Deep Recess |
97E95-06555-00 |
from US $1.21 |
||
|
16
|
16
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
17
|
17
97313-06040-00 Bolt (682)682 |
97313-06040-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
97095-06040-00 Bolt682 |
97095-06040-00 |
from US $1.39 |
||
|
18
|
18
905-60060-03-00
Spacer (322-22137-00)
322-22137-00 |
905-60060-03-00 |
— | ||
|
19
|
19
322-22178-00-00
Tensioner
|
322-22178-00-00 |
— | ||
|
20
|
20
565-22210-00-00
Shk/abs Assembly, Rear
|
565-22210-00-00 |
— | ||
|
21
|
21
90106-10025-00 Bolt, Dome Head |
90106-10025-00 |
from US $5.81 |
||
| replacement | |||||
|
21
|
21
958-14100-40-00 Bolt, Flange |
958-14100-40-00 |
from US $2.91 |
||
