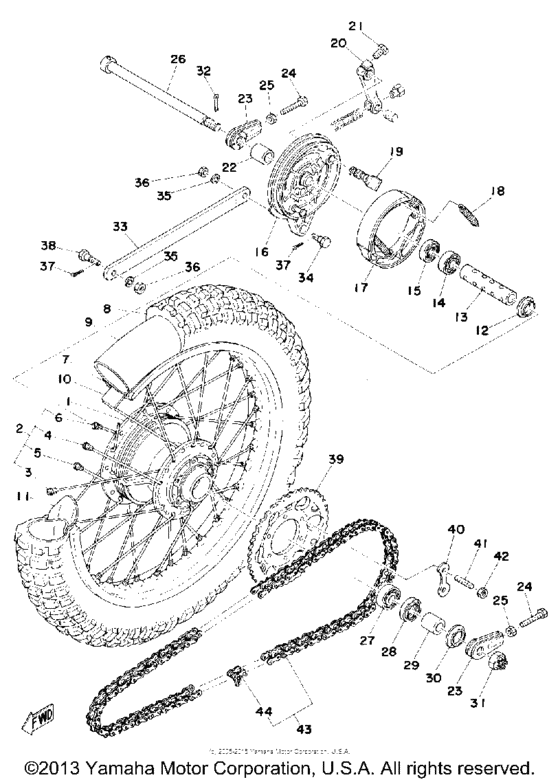

Rear wheel Diagram Yamaha MX
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 125
- Model
- MX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
537-25311-01-98
Hub, Rear
|
537-25311-01-98 |
— | ||
|
2
|
2
537-25304-01-00
Spoke Set, Rear
|
537-25304-01-00 |
— | ||
|
3
|
3
537-25396-90-00
Spoke Set, Inner 2
|
537-25396-90-00 |
— | ||
|
4
|
4
537-25397-90-00
Spoke Set, Outer 2
|
537-25397-90-00 |
— | ||
|
5
|
5
537-25391-90-00
Spoke Set, Inner 1
|
537-25391-90-00 |
— | ||
|
6
|
6
537-25392-90-00
Spoke Set, Outer 1
|
537-25392-90-00 |
— | ||
|
7
|
7
944-18182-45-00
Rim 1.85X18
1.85X18 |
944-18182-45-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
1.85X18 |
999-99999-99-00 |
— | ||
|
8
|
8
941-41181-71-00
410X18 Dun Sr Sprt
SR SPRT |
941-41181-71-00 |
— | ||
|
9
|
9
94235-18085-00 Tube (2.75-18)2.75-18 |
94235-18085-00 |
US $22.55 |
||
| replacement | |||||
|
9
|
9
94232-18113-00 Tube2.75-18 |
94232-18113-00 |
from US $24.92 |
||
|
10
|
10
94325-18043-00 Band, Rim (538)2.50-18 |
94325-18043-00 |
from US $4.39 |
||
| replacement | |||||
|
10
|
10
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.72 |
||
|
11
|
11
2X3-25394-00-00
Spacer, Bead
|
2X3-25394-00-00 |
— | ||
|
12
|
12
146-25115-00-00 Flange, Spacer |
146-25115-00-00 |
from US $6.23 |
||
|
13
|
13
90560-15312-00 Spacer |
90560-15312-00 |
from US $27.49 |
||
|
14
|
14
933-06202-04-00 Bearing |
933-06202-04-00 |
from US $12.06 |
||
|
15
|
15
93104-22018-00 Oil Seal |
93104-22018-00 |
from US $6.52 |
||
|
16
|
16
401-25321-00-98
Plate, Brake Shoe
|
401-25321-00-98 |
— | ||
|
17
|
17
183-W2536-00-00
Brake Shoe Set-2Pcs
|
183-W2536-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $8.36 |
||
|
19
|
19
401-25351-00-00 Camshaft |
401-25351-00-00 |
US $51.86 |
||
| replacement | |||||
|
19
|
19
26A-25351-00-00 Camshaft |
26A-25351-00-00 |
US $51.86 |
||
|
20
|
20
4V5-25355-00-00
Lever, Camshaft (168-25355-00
168-25355-00 |
4V5-25355-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
168-25355-00 |
999-99999-99-00 |
— | ||
|
21
|
21
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
21
|
21
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
22
|
22
90387-15115-00
Collar
|
90387-15115-00 |
— | ||
|
23
|
23
248-25388-00-00 Puller, Chain 1 |
248-25388-00-00 |
from US $28.90 |
||
|
24
|
24
90101-08699-00 Bolt |
90101-08699-00 |
from US $3.42 |
||
| replacements | |||||
|
24
|
24
90101-08060-00 Bolt |
90101-08060-00 |
from US $3.54 |
||
|
24
|
24
90101-08777-00 Bolt |
90101-08777-00 |
from US $1.81 |
||
|
25
|
25
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
25
|
25
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
26
|
26
537-25381-00-00
Axle, Wheel
|
537-25381-00-00 |
— | ||
|
27
|
27
933-06302-02-00 Bearing (1H7) |
933-06302-02-00 |
from US $20.54 |
||
| replacement | |||||
|
27
|
27
93306-30212-00 Bearing |
93306-30212-00 |
from US $16.84 |
||
|
28
|
28
93106-26005-00 Oil Seal |
93106-26005-00 |
from US $7.08 |
||
|
29
|
29
903-87154-24-00
Collar (401-25377-00)
401-25377-00 |
903-87154-24-00 |
— | ||
|
30
|
30
401-25367-00-00 Cover, Hub Dust |
401-25367-00-00 |
from US $8.08 |
||
|
31
|
31
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
31
|
31
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
32
|
32
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
32
|
32
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
33
|
33
537-25371-00-00
Bar, Tension
|
537-25371-00-00 |
— | ||
|
34
|
34
90109-08368-00 Bolt |
90109-08368-00 |
from US $5.67 |
||
|
35
|
35
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
36
|
36
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
36
|
36
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
37
|
37
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
37
|
37
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
38
|
38
90109-08063-00 Bolt |
90109-08063-00 |
from US $4.39 |
||
|
39
|
39
565-25445-20-33
Sprocket, Drivn 45T
45T |
565-25445-20-33 |
— | ||
|
40
|
40
537-25412-00-00
Washer
|
537-25412-00-00 |
— | ||
|
41
|
41
90116-10221-00 Bolt, Stud |
90116-10221-00 |
from US $6.61 |
||
|
42
|
42
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
42
|
42
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
43
|
43
945-80341-14-00
428Hd 114L
114L |
945-80341-14-00 |
— | ||
|
44
|
44
946-80060-31-00
Chain Joint
|
946-80060-31-00 |
— | ||
