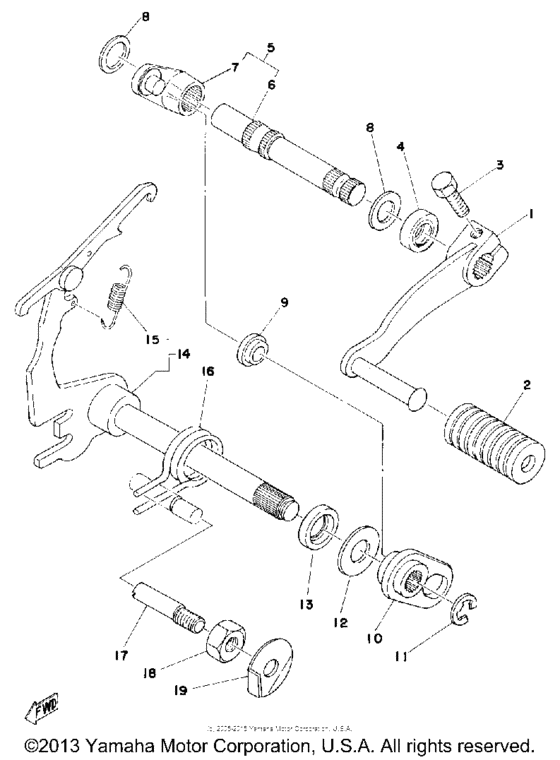

Shift shaft (2) Diagram Yamaha MX
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 125
- Model
- MX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2W5-18111-00-00 Pedal, Shift |
2W5-18111-00-00 |
from US $57.96 |
||
|
2
|
2
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
|
3
|
3
970-16060-20-00
Bolt(84J)
|
970-16060-20-00 |
— | ||
| replacement | |||||
|
3
|
3
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
4
|
4
93109-12012-00 Oil Seal |
93109-12012-00 |
from US $10.87 |
||
|
5
|
5
401-18102-01-00
Shift Shaft Assembly 2
|
401-18102-01-00 |
— | ||
| replacement | |||||
|
5
|
5
401-18102-02-00
Shift Shaft Assembly 2
|
401-18102-02-00 |
— | ||
|
6
|
6
401-18155-02-00
Shaft, Shift 2
|
401-18155-02-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
401-18151-00-00
Lever, Shift 3
|
401-18151-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
401-18334-00-00 Shim |
401-18334-00-00 |
from US $6.23 |
||
|
9
|
9
401-18178-00-00 Roller, Shift Lever |
401-18178-00-00 |
from US $9.49 |
||
|
10
|
10
401-18152-01-00 Lever, Shift 4 |
401-18152-01-00 |
from US $33.01 |
||
|
11
|
11
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.52 |
||
|
12
|
12
90201-12575-00 Washer, Plate (353) |
90201-12575-00 |
from US $1.70 |
||
|
13
|
13
931-01120-60-00 Oil Seal |
931-01120-60-00 |
from US $6.94 |
||
| replacement | |||||
|
13
|
13
931-01121-73-00 Oil Seal |
931-01121-73-00 |
from US $5.40 |
||
|
14
|
14
525-18101-01-00
Shift Shaft Assembly.1
|
525-18101-01-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90506-09009-00 Spring, Tension |
90506-09009-00 |
from US $2.55 |
||
|
16
|
16
90508-25273-00 Spring, Torsion |
90508-25273-00 |
from US $5.29 |
||
| replacement | |||||
|
16
|
16
90508-32054-00 Spring, Torsion |
90508-32054-00 |
from US $3.85 |
||
|
17
|
17
90149-08096-00
Screw, Spec''l Shape
|
90149-08096-00 |
— | ||
|
18
|
18
90170-08029-00 Nut, Hexagon |
90170-08029-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
90170-08193-00 Nut, Hexagon |
90170-08193-00 |
from US $1.56 |
||
|
19
|
19
90215-08014-00 Washer, Lock |
90215-08014-00 |
from US $2.55 |
||
