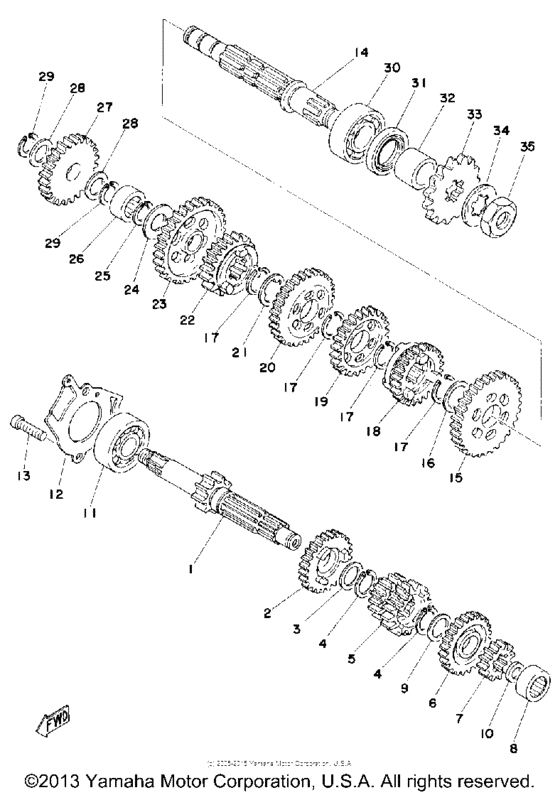

Transmission Diagram Yamaha MX
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 125
- Model
- MX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
537-17411-00-00
Axle, Main
|
537-17411-00-00 |
— | ||
|
2
|
2
537-17151-00-00
Gear, 5Th Pinion
5TH PINION |
537-17151-00-00 |
— | ||
|
3
|
3
90201-20266-00 Washer, Plate |
90201-20266-00 |
from US $1.56 |
||
|
4
|
4
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.94 |
||
|
5
|
5
537-17131-01-00
Gear, 3Rd Pinion
3RD PINION |
537-17131-01-00 |
— | ||
|
6
|
6
537-17161-00-00
Gear, 6Th Pinion
6TH PINION |
537-17161-00-00 |
— | ||
|
7
|
7
537-17121-00-00
Gear, 2Nd Pinion
2ND PINION |
537-17121-00-00 |
— | ||
|
8
|
8
933-11315-22-00
Bearing, Cylinder.#11
|
933-11315-22-00 |
— | ||
|
9
|
9
90201-20266-00 Washer, Plate |
90201-20266-00 |
from US $1.56 |
||
|
10
|
10
90201-15701-00 Washer, Plate (T=1.0) |
90201-15701-00 |
from US $2.08 |
||
|
10
|
10
90201-15564-00 Washer, Plate1.5T |
90201-15564-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
90201-15234-00 Washer, Plate (1.5T)1.5T |
90201-15234-00 |
from US $1.70 |
||
|
11
|
11
933-06303-09-00
Bearing
|
933-06303-09-00 |
— | ||
| replacement | |||||
|
11
|
11
93306-30317-00 Bearing |
93306-30317-00 |
from US $27.74 |
||
|
12
|
12
1G8-17471-00-00 Plate, Cover |
1G8-17471-00-00 |
US $14.96 |
||
|
13
|
13
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
13
|
13
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
14
|
14
537-17421-00-00
Axle, Drive
|
537-17421-00-00 |
— | ||
|
15
|
15
537-17221-01-00
Gear, 2Nd Wheel
2ND WHEEL |
537-17221-01-00 |
— | ||
|
16
|
16
90201-22555-00 Washer, Plate |
90201-22555-00 |
from US $1.70 |
||
|
17
|
17
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.81 |
||
|
18
|
18
537-17261-01-00
Gear, 6Th Wheel
6TH WHEEL |
537-17261-01-00 |
— | ||
|
19
|
19
537-17241-02-00
Gear, 4Th Wheel
4TH WHEEL |
537-17241-02-00 |
— | ||
|
20
|
20
537-17231-02-00
Gear, 3Rd Wheel
3RD WHEEL |
537-17231-02-00 |
— | ||
|
21
|
21
90209-18135-00 Washer |
90209-18135-00 |
from US $1.84 |
||
|
22
|
22
537-17251-01-00
Gear, 5Th Wheel
5TH WHEEL |
537-17251-01-00 |
— | ||
|
23
|
23
537-17211-00-00
Gear, 1St Wheel
1ST WHEEL |
537-17211-00-00 |
— | ||
|
24
|
24
164-17427-00-06 Shim 1T=0.6 |
164-17427-00-06 |
from US $3.12 |
||
|
25
|
25
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
25
|
25
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.18 |
||
|
26
|
26
93311-31567-00 Bearing |
93311-31567-00 |
from US $34.89 |
||
|
27
|
27
525-15651-00-00 Gear, Kick Idle (25T)25T |
525-15651-00-00 |
from US $44.76 |
||
|
28
|
28
137-17417-00-05 Shim 1 (0.5T)0.5T |
137-17417-00-05 |
from US $3.12 |
||
|
29
|
29
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
29
|
29
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.18 |
||
|
30
|
30
93306-20458-00 Bearing |
93306-20458-00 |
from US $22.62 |
||
| replacement | |||||
|
30
|
30
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $29.27 |
||
|
31
|
31
931-02260-42-00 Oil Seal |
931-02260-42-00 |
from US $6.51 |
||
|
32
|
32
90387-202A0-00 Collar |
90387-202A0-00 |
from US $9.57 |
||
|
33
|
33
93822-15065-00 Sprocket,drive 15T(1741746150)15T1741746150 U.R |
93822-15065-00 |
from US $20.26 |
||
|
33
|
33
93822-14037-00 Sprocket, Drive (5N0-17461-40-014T1741746140 U.RSTD |
93822-14037-00 |
from US $17.71 |
||
| replacement | |||||
|
33
|
33
938-22140-43-00 Sprocket, Drive (5N0-17461-40-014T1741746140 U.RSTD |
938-22140-43-00 |
from US $24.68 |
||
|
33
|
33
93822-13024-00 Sprocket, Drive (13T)13T1741746130 U.R |
93822-13024-00 |
from US $18.84 |
||
| replacement | |||||
|
33
|
33
93822-13213-00 Sprocket, Drive (13T)13T1741746130 U.R |
93822-13213-00 |
from US $18.84 |
||
|
34
|
34
90215-16020-00 Washer, Lock |
90215-16020-00 |
from US $3.68 |
||
| replacement | |||||
|
34
|
34
90215-16127-00 Washer, Lock (1L8) |
90215-16127-00 |
from US $3.68 |
||
|
35
|
35
90179-16018-00 Nut |
90179-16018-00 |
from US $2.36 |
||
| replacement | |||||
|
35
|
35
90179-16226-00 Nut (1L8) |
90179-16226-00 |
