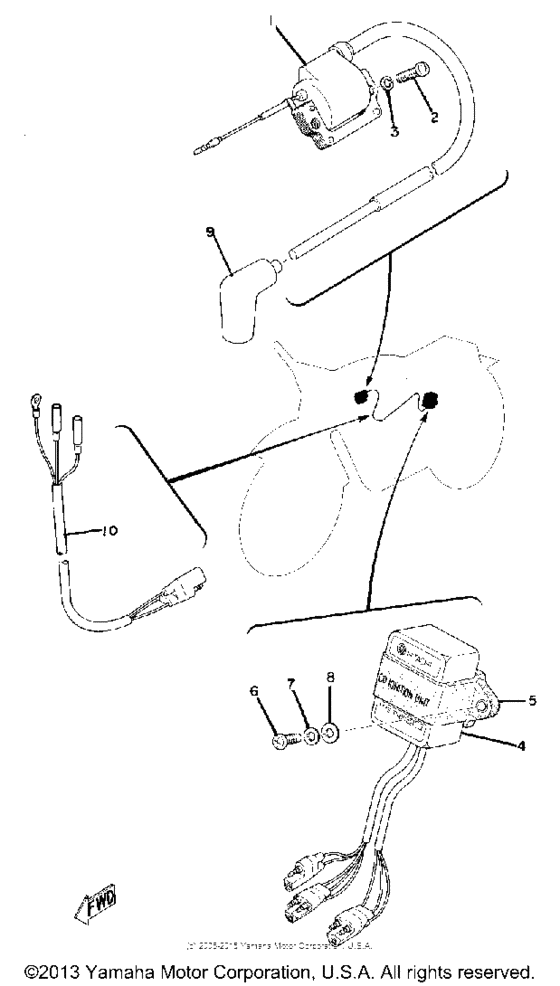

Electrical Diagram Yamaha MX
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
322-82310-10-00
Ignition Coil Assembly
|
322-82310-10-00 |
— | ||
|
2
|
2
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
2
|
2
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
455-85540-00-00
Cdi Unit Assembly
|
455-85540-00-00 |
— | ||
|
5
|
5
363-85546-00-00
Band
|
363-85546-00-00 |
— | ||
|
6
|
6
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $3.26 |
||
| replacement | |||||
|
6
|
6
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
7
|
7
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
8
|
8
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
9
|
9
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
10
|
10
401-85517-00-00
Wire, Sub Lead
|
401-85517-00-00 |
— | ||
