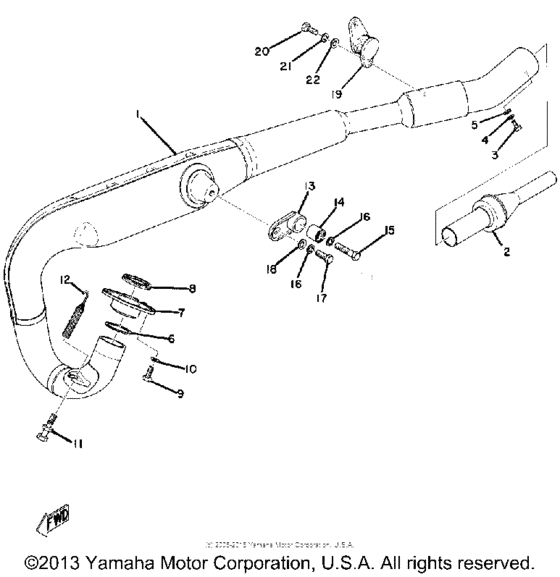

Exhaust Diagram Yamaha MX
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
455-14610-00-00
Exhaust Pipe Assembly L
|
455-14610-00-00 |
— | ||
|
2
|
2
455-14752-00-00
Pipe, Outlet
|
455-14752-00-00 |
— | ||
|
3
|
3
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
3
|
3
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
5
|
5
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
6
|
6
248-14623-00-00
Gasket
|
248-14623-00-00 |
— | ||
| replacement | |||||
|
6
|
6
248-14623-10-00 Gasket |
248-14623-10-00 |
from US $7.37 |
||
|
7
|
7
2K5-14612-00-00
Nut, Ring
|
2K5-14612-00-00 |
— | ||
|
8
|
8
152-14613-00-00
Gasket, Exhaust Pipe
|
152-14613-00-00 |
— | ||
| replacement | |||||
|
8
|
8
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.98 |
||
|
9
|
9
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
9
|
9
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
9
|
9
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
9
|
9
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
901-09083-05-00
Bolt (322-14684-10)
322-14684-10 |
901-09083-05-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
322-14684-10 |
999-99999-99-00 |
— | ||
|
12
|
12
905-07200-12-00
Spring, Tension (145-14683-00)
145-14683-00 |
905-07200-12-00 |
— | ||
|
13
|
13
363-14771-00-00
Stay, Muffler 1
|
363-14771-00-00 |
— | ||
|
14
|
14
164-22216-00-00 Bushing, Rear Cushion |
164-22216-00-00 |
from US $8.60 |
||
|
15
|
15
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
15
|
15
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
17
|
17
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
17
|
17
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
18
|
18
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
19
|
19
363-14782-10-00
Stay 5
|
363-14782-10-00 |
— | ||
|
20
|
20
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
20
|
20
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
20
|
20
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
20
|
20
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
22
|
22
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
