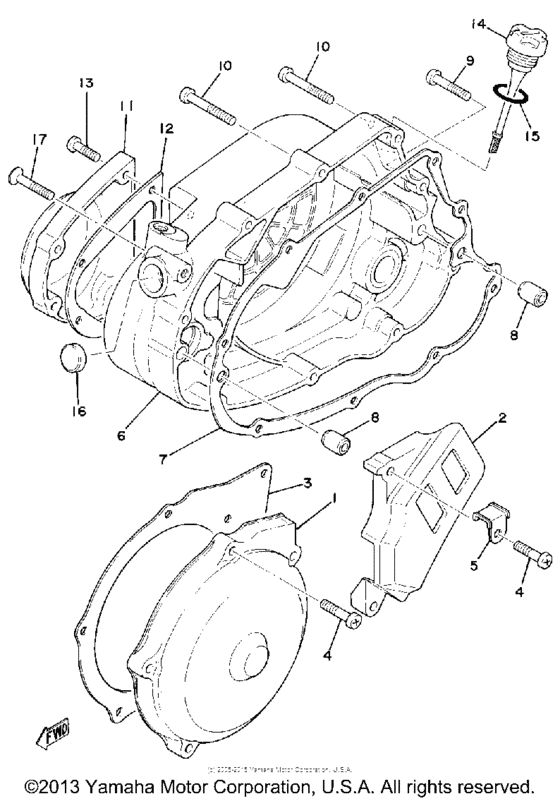

Crankcase cover Diagram Yamaha MX
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W1-15411-00-00
Cover, Crankcase L
|
1W1-15411-00-00 |
— | ||
|
2
|
2
1W1-15421-01-00
Cover, Crankcase R
|
1W1-15421-01-00 |
— | ||
|
3
|
3
1W1-15455-00-00
Gasket 1
|
1W1-15455-00-00 |
— | ||
| replacement | |||||
|
3
|
3
1W1-15455-01-00
KICK CRANK ASY
|
1W1-15455-01-00 |
— | ||
|
4
|
4
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
4
|
4
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
5
|
5
2A6-15484-01-00 Clamp 2 |
2A6-15484-01-00 |
from US $5.10 |
||
|
6
|
6
2A6-15431-00-00
Cover, Crankcase 3
|
2A6-15431-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
18G-15451-01-00 Gskt, Crcs |
18G-15451-01-00 |
from US $14.17 |
||
| replacement | |||||
|
7
|
7
18G-15451-03-00 Gasket, Crankcase Cover 1 |
18G-15451-03-00 |
from US $11.60 |
||
|
8
|
8
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
8
|
8
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
8
|
8
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
9
|
9
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
9
|
9
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
10
|
10
98580-06040-00 Screw, Pan Head (90501-06040-0090501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
11
|
11
2A6-15416-00-00
Cover, Oil Pump
|
2A6-15416-00-00 |
— | ||
|
12
|
12
2A6-15456-00-00 Gasket, O/pmp Cur1 |
2A6-15456-00-00 |
from US $15.30 |
||
| replacement | |||||
|
12
|
12
2A6-15456-01-00 Gasket, Oil Pump Cover 1 |
2A6-15456-01-00 |
from US $15.30 |
||
|
13
|
13
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
13
|
13
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
14
|
14
18G-15362-00-00 Plug, Oil Level |
18G-15362-00-00 |
from US $5.06 |
||
|
15
|
15
932-10211-90-00 O-Ring |
932-10211-90-00 |
from US $1.81 |
||
|
16
|
16
903-38190-78-00 301 Plug |
903-38190-78-00 |
US $8.53 |
||
|
17
|
17
92601-06030-00 Screw, Flat Head |
92601-06030-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
98707-06030-00 Screw, Flat Head |
98707-06030-00 |
from US $1.56 |
||
