Electrical Diagram Yamaha MX
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|

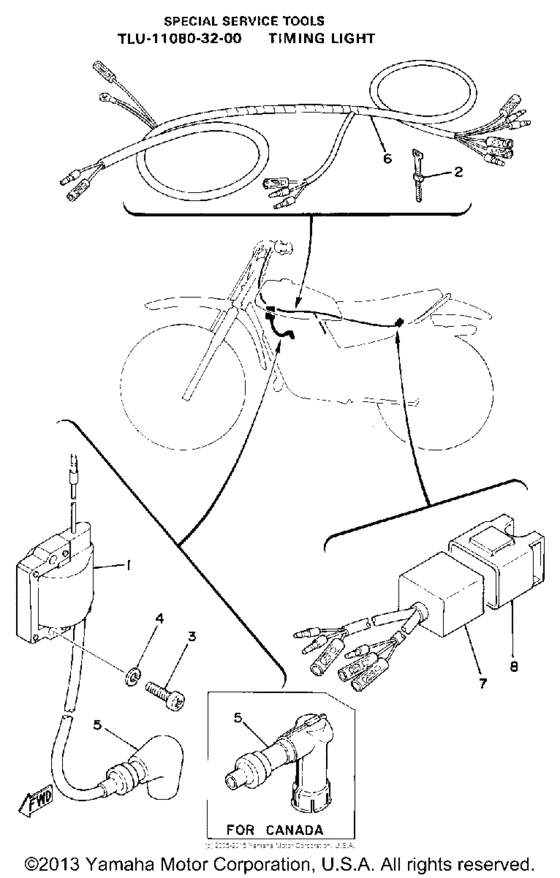

1
|
1
5G4-82310-40-00 Ignition Coil Assembly |
5G4-82310-40-00 |
from US $163.03 |
||
| replacement | |||||
|
1
|
1
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
2
|
2
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
3
|
3
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
5
|
5
81E-82370-20-00 Plug Cap Assembly |
81E-82370-20-00 |
from US $28.34 |
||
| replacement | |||||
|
5
|
5
8DG-82370-00-00 Plug Cap Assy |
8DG-82370-00-00 |
from US $28.34 |
||
|
5
|
5
8E7-82370-11-00 Plug Cap AssemblyPlug cap assy with noise suppressor FOR CANADA |
8E7-82370-11-00 |
from US $44.80 |
||
| replacement | |||||
|
5
|
5
7KA-82370-00-00 Plug Cap AssyFOR CANADA |
7KA-82370-00-00 |
from US $52.92 |
||
|
6
|
6
3M2-82590-00-00
Wire Harness Assembly
|
3M2-82590-00-00 |
— | ||
|
7
|
7
3M2-85540-20-00
Cdi Unit Assembly
|
3M2-85540-20-00 |
— | ||
|
8
|
8
2A7-85546-00-00 Band |
2A7-85546-00-00 |
from US $17.85 |
||
