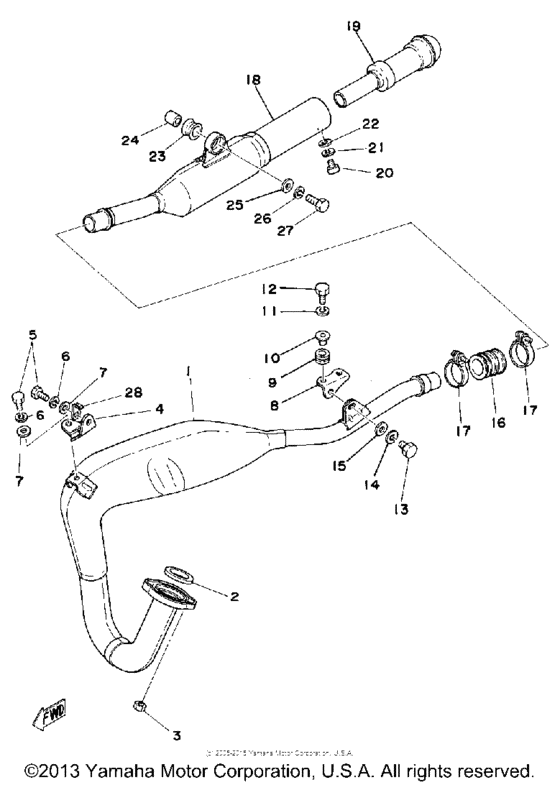

Exhaust Diagram Yamaha MX
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3J0-14610-00-00
Exhaust Pipe Assembly L (2A6-14
2A6-14 |
3J0-14610-00-00 |
— | ||
|
2
|
2
152-14613-00-00
Gasket, Exhaust Pipe
|
152-14613-00-00 |
— | ||
| replacement | |||||
|
2
|
2
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.98 |
||
|
3
|
3
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
4
|
4
2A6-14772-00-00
Stay, Muffler 2
|
2A6-14772-00-00 |
— | ||
| replacement | |||||
|
4
|
4
2A6-14772-01-00 Stay, Muffler 2 |
2A6-14772-01-00 |
from US $13.37 |
||
|
5
|
5
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
5
|
5
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
7
|
7
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
8
|
8
5V7-14771-00-00
Stay, Muffler 1
|
5V7-14771-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
10
|
10
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
10
|
10
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.52 |
||
|
13
|
13
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
13
|
13
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
14
|
14
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
15
|
15
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
16
|
16
1W2-14714-00-00 Gasket, Muffler |
1W2-14714-00-00 |
from US $19.54 |
||
|
17
|
17
90460-37026-00 Clamp, Hose |
90460-37026-00 |
from US $4.53 |
||
| replacement | |||||
|
17
|
17
90460-37130-00 Clamp, Hose |
90460-37130-00 |
from US $4.53 |
||
|
18
|
18
2A6-14753-00-00
Silencer, Exhaust
|
2A6-14753-00-00 |
— | ||
|
19
|
19
1M1-14752-01-00
Pipe, Outlet
|
1M1-14752-01-00 |
— | ||
|
20
|
20
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
20
|
20
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
22
|
22
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
22
|
22
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
22
|
22
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
23
|
23
565-14747-00-00 Damper, Muffler |
565-14747-00-00 |
from US $8.78 |
||
|
24
|
24
903-87082-58-00 Collar |
903-87082-58-00 |
from US $3.40 |
||
|
25
|
25
90201-08753-00 Washer, Plate |
90201-08753-00 |
US $2.22 |
||
| replacement | |||||
|
25
|
25
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $2.22 |
||
|
26
|
26
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
27
|
27
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
27
|
27
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
27
|
27
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
27
|
27
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
