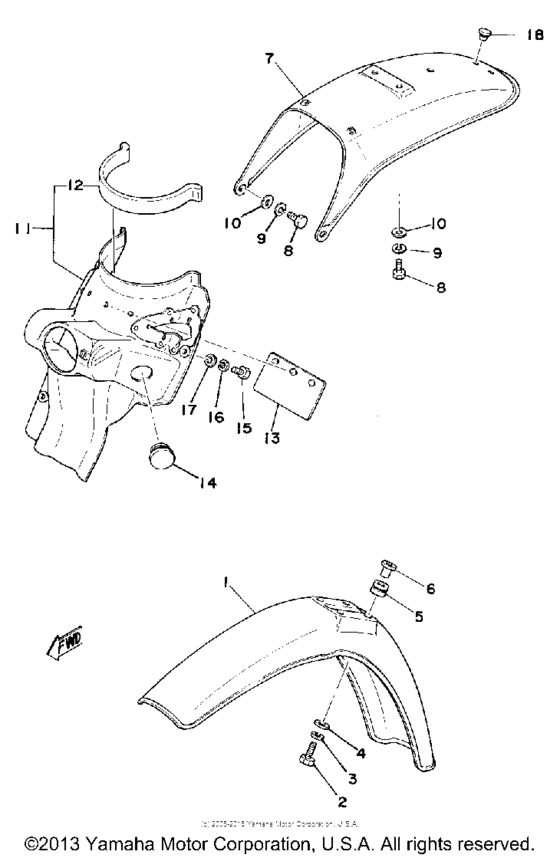

Front fender-rear fender Diagram Yamaha MX
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3M2-21511-00-00
Fender, Front
|
3M2-21511-00-00 |
— | ||
|
2
|
2
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
2
|
2
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
4
|
4
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
5
|
5
90480-14198-00 Grommet |
90480-14198-00 |
from US $4.39 |
||
|
6
|
6
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
6
|
6
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
7
|
7
2A8-21611-80-00
Fender, Rear
|
2A8-21611-80-00 |
— | ||
|
8
|
8
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
8
|
8
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
8
|
8
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
11
|
11
999-99011-51-00
Guard, Mud
|
999-99011-51-00 |
— | ||
|
12
|
12
2A6-21639-00-00 Damper 2 |
2A6-21639-00-00 |
from US $16.58 |
||
|
13
|
13
1M1-21621-00-00 Flap |
1M1-21621-00-00 |
from US $8.82 |
||
|
14
|
14
90480-01254-00
Grommet
|
90480-01254-00 |
— | ||
|
15
|
15
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
15
|
15
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
15
|
15
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
18
|
18
90480-12012-00 Grommet |
90480-12012-00 |
from US $2.64 |
||
