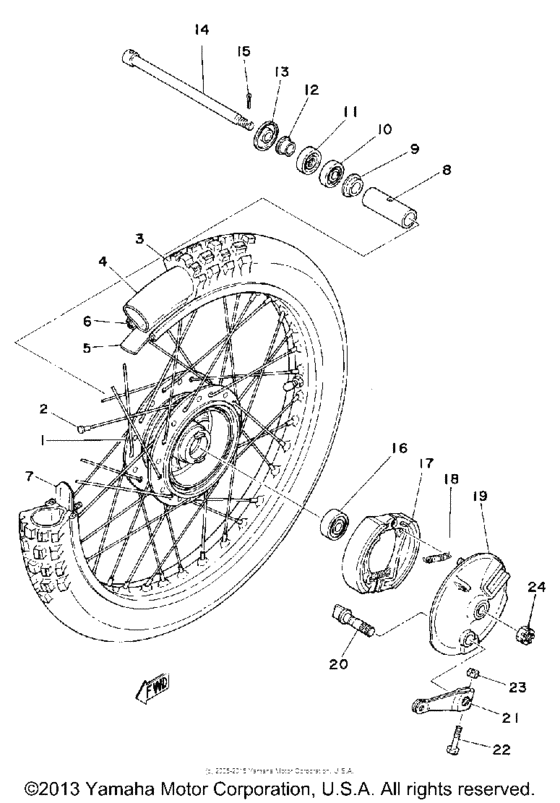

Front wheel Diagram Yamaha MX
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
248-25111-00-98 Hub, Front |
248-25111-00-98 |
from US $144.70 |
||
|
2
|
2
3M2-25104-00-00
Spoke Set, Front
|
3M2-25104-00-00 |
— | ||
|
3
|
3
941-27212-87-00
275X21 Irc Mx45
|
941-27212-87-00 |
— | ||
|
4
|
4
94230-21126-00
Tube
|
94230-21126-00 |
— | ||
| replacement | |||||
|
4
|
4
942-27212-93-00
Tube (2.75-21)(2Yy)
|
942-27212-93-00 |
— | ||
|
5
|
5
94330-21088-00 Band, Rim |
94330-21088-00 |
US $4.39 |
||
| replacement | |||||
|
5
|
5
94330-21084-00 Band, Rim (1.60-21) |
94330-21084-00 |
from US $4.39 |
||
|
6
|
6
944-16212-23-00
Rim 1.60X21
1.60X21 |
944-16212-23-00 |
— | ||
|
7
|
7
1T1-25194-00-00 Spacer, Bead |
1T1-25194-00-00 |
from US $56.65 |
||
|
8
|
8
90560-12261-00 Spacer |
90560-12261-00 |
from US $4.96 |
||
| replacement | |||||
|
8
|
8
90560-12138-00 Spacer |
90560-12138-00 |
from US $4.96 |
||
|
9
|
9
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
10
|
10
93306-30103-00 Bearing |
93306-30103-00 |
from US $12.75 |
||
| replacement | |||||
|
10
|
10
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.75 |
||
|
11
|
11
93102-18008-00 Oil Seal |
93102-18008-00 |
from US $7.23 |
||
|
12
|
12
90387-12265-00 Collar (183-25183-00)183-25183-00 |
90387-12265-00 |
from US $7.37 |
||
|
13
|
13
2K5-25118-00-00 Cover, Hub Dust |
2K5-25118-00-00 |
from US $10.26 |
||
|
14
|
14
353-25381-00-00 Axle, Wheel |
353-25381-00-00 |
from US $27.25 |
||
|
15
|
15
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
16
|
16
93306-30103-00 Bearing |
93306-30103-00 |
from US $12.75 |
||
| replacement | |||||
|
16
|
16
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.75 |
||
|
17
|
17
22F-W2534-00-00
Brakeshoe Set
|
22F-W2534-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
19
|
19
2K5-25121-01-98
Plate, Brake Shoe
|
2K5-25121-01-98 |
— | ||
|
20
|
20
122-25351-02-00 Camshaft |
122-25351-02-00 |
from US $36.06 |
||
|
21
|
21
401-25155-11-00
Lever, Camshaft 1 (401-25155-00
401-25155-00 |
401-25155-11-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
401-25155-00 |
999-99999-99-00 |
— | ||
|
22
|
22
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
23
|
23
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
24
|
24
90171-10004-00 Nut, Castle |
90171-10004-00 |
from US $2.41 |
||
| replacement | |||||
|
24
|
24
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $2.02 |
||
