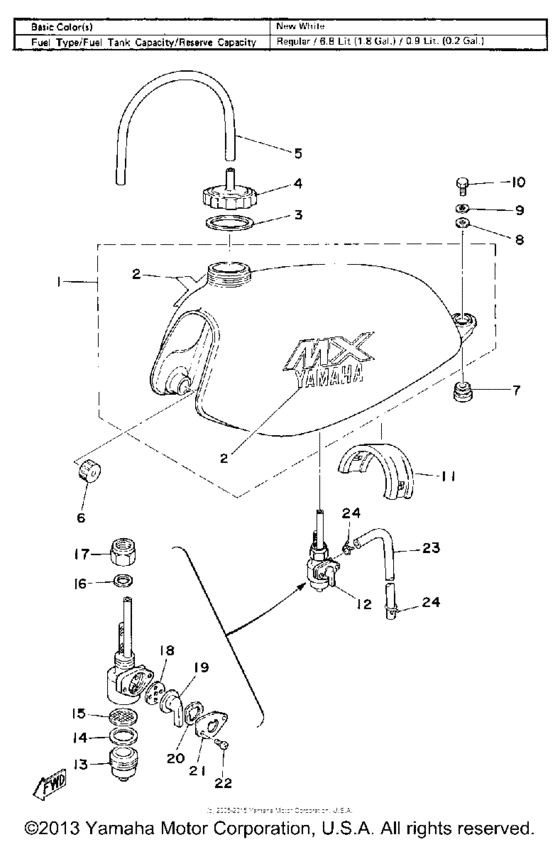

Fuel tank Diagram Yamaha MX
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2N4-24110-00-X1
Fuel Tank
|
2N4-24110-00-X1 |
— | ||
|
2
|
2
3M1-24244-00-00
Graphic, Fuel Tnk 1
|
3M1-24244-00-00 |
— | ||
|
3
|
3
1W1-24612-00-00 Packing, Cap |
1W1-24612-00-00 |
from US $9.21 |
||
|
4
|
4
2A6-24611-00-00
Body, Cap
|
2A6-24611-00-00 |
— | ||
|
5
|
5
904-45091-15-00
Hose (L460)
|
904-45091-15-00 |
— | ||
| replacement | |||||
|
5
|
5
90445-083J5-00 Hose (L460) |
90445-083J5-00 |
from US $3.72 |
||
|
6
|
6
278-24181-00-00
Damper, Locating 1
|
278-24181-00-00 |
— | ||
| replacement | |||||
|
6
|
6
3TB-24181-00-00 Damper, Locating 1 |
3TB-24181-00-00 |
from US $4.96 |
||
|
7
|
7
904-80222-31-00
Grommet
|
904-80222-31-00 |
— | ||
|
8
|
8
902-01060-73-00
Washer, Plate
|
902-01060-73-00 |
— | ||
| replacement | |||||
|
8
|
8
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
10
|
10
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
11
|
11
2A6-24182-00-00
Damper, Locating 2
|
2A6-24182-00-00 |
— | ||
| replacement | |||||
|
11
|
11
5L9-F4182-00-00
Damper, Locating 2
|
5L9-F4182-00-00 |
— | ||
|
12
|
12
304-24500-12-00
Fuel Cock Assy 1
|
304-24500-12-00 |
— | ||
| replacement | |||||
|
12
|
12
357-24500-20-00 Fuel Cock Assy 1 |
357-24500-20-00 |
from US $47.48 |
||
|
13
|
13
1A0-24521-01-00 Cup, Filter |
1A0-24521-01-00 |
US $32.87 |
||
|
14
|
14
132-24522-00-00 Gasket |
132-24522-00-00 |
from US $17.71 |
||
| replacement | |||||
|
14
|
14
498-24522-00-00 Gasket |
498-24522-00-00 |
from US $17.71 |
||
|
15
|
15
304-24515-00-00
Net, Filter 2
|
304-24515-00-00 |
— | ||
|
16
|
16
434-24532-00-00 Gasket |
434-24532-00-00 |
from US $5.53 |
||
|
17
|
17
132-24531-00-00
Nut
|
132-24531-00-00 |
— | ||
|
18
|
18
137-24523-00-00 Petcock Packing Valve |
137-24523-00-00 |
from US $8.36 |
||
|
19
|
19
447-24524-00-00
Lever, Cock
|
447-24524-00-00 |
— | ||
|
20
|
20
132-24518-00-00 Washer, Wave |
132-24518-00-00 |
from US $4.25 |
||
|
21
|
21
447-24525-00-00
Plate, Lever Fitting
|
447-24525-00-00 |
— | ||
|
22
|
22
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
23
|
23
904-45090-89-00
Hose (L420)
|
904-45090-89-00 |
— | ||
| replacements | |||||
|
23
|
23
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
23
|
23
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
24
|
24
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
