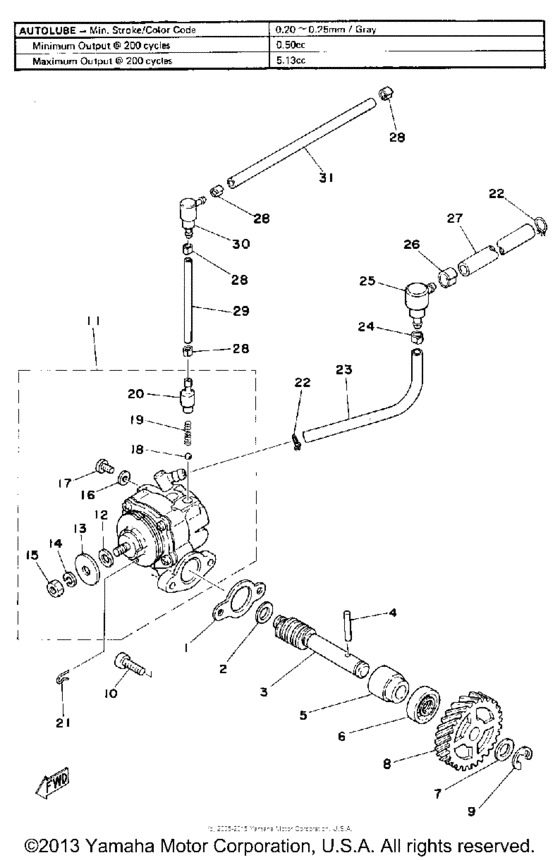

Oil pump Diagram Yamaha MX
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3MT-13116-00-00
Gasket, Pump Case
|
3MT-13116-00-00 |
— | ||
| replacement | |||||
|
1
|
1
126-13116-01-00 Gasket, Pump Case |
126-13116-01-00 |
from US $1.94 |
||
|
2
|
2
90201-08624-00 Washer, Plate |
90201-08624-00 |
from US $1.70 |
||
|
3
|
3
558-13175-00-00 Shaft, Worm |
558-13175-00-00 |
US $31.03 |
||
| replacements | |||||
|
3
|
3
275-13175-01-00 Shaft, Worm |
275-13175-01-00 |
from US $17.35 |
||
|
3
|
3
275-13175-02-00 Shaft, Worm |
275-13175-02-00 |
US $26.44 |
||
|
4
|
4
93603-22028-00 Pin, Dowel |
93603-22028-00 |
from US $1.70 |
||
|
5
|
5
1E7-13176-00-00
Metal, Worm Shaft Outer
|
1E7-13176-00-00 |
— | ||
| replacement | |||||
|
5
|
5
137-13176-00-00 Metal, Worm Shaft Outer |
137-13176-00-00 |
from US $9.59 |
||
|
6
|
6
93101-10002-00 Oil Seal |
93101-10002-00 |
from US $5.24 |
||
|
7
|
7
90201-105J4-00 Washer, Plate(52H) |
90201-105J4-00 |
from US $2.55 |
||
|
8
|
8
2A6-13178-00-00 Gear, Drive (24T) |
2A6-13178-00-00 |
from US $7.42 |
||
|
9
|
9
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.52 |
||
|
10
|
10
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
10
|
10
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
11
|
11
2A6-13101-00-00
Oil Pump Assembly
|
2A6-13101-00-00 |
— | ||
|
12
|
12
137-13137-00-10 Shim (T=1.0) |
137-13137-00-10 |
from US $3.26 |
||
|
12
|
12
137-13137-00-05 Shim (T=0.5) |
137-13137-00-05 |
from US $3.26 |
||
|
12
|
12
137-13137-00-03 Shim (T=0.3) |
137-13137-00-03 |
from US $3.26 |
||
|
13
|
13
137-13138-01-00 Plate, Adjusting |
137-13138-01-00 |
from US $7.93 |
||
|
14
|
14
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
15
|
15
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
16
|
16
90430-04004-00 Gasket |
90430-04004-00 |
from US $1.28 |
||
|
17
|
17
989-01040-08-00
Screw, Bind
|
989-01040-08-00 |
— | ||
| replacement | |||||
|
17
|
17
98980-04008-00 Screw, Bind |
98980-04008-00 |
from US $1.21 |
||
|
18
|
18
93505-32002-00 Ball |
93505-32002-00 |
from US $1.84 |
||
|
19
|
19
90501-02018-00 Spring, Compression |
90501-02018-00 |
from US $3.97 |
||
|
20
|
20
402-13552-00-00 Nozzle |
402-13552-00-00 |
from US $9.07 |
||
|
21
|
21
363-13133-01-00 Clip |
363-13133-01-00 |
from US $2.98 |
||
|
22
|
22
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
23
|
23
904-45072-19-00
Hose (L200)
|
904-45072-19-00 |
— | ||
| replacements | |||||
|
23
|
23
904-45072-G8-00 Hose (L310) |
904-45072-G8-00 |
from US $10.91 |
||
|
23
|
23
90445-07176-00 Hose (L200) |
90445-07176-00 |
from US $1.82 |
||
|
24
|
24
90468-02025-00 Clip |
90468-02025-00 |
from US $2.91 |
||
|
25
|
25
2A6-13115-01-00
Connector, Sctn Ppe
|
2A6-13115-01-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
90468-02078-00 Clip |
90468-02078-00 |
from US $2.69 |
||
|
27
|
27
904-45091-00-00
Hose (L420)
|
904-45091-00-00 |
— | ||
| replacements | |||||
|
27
|
27
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
27
|
27
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
28
|
28
90468-02033-00 Clip |
90468-02033-00 |
from US $1.35 |
||
|
29
|
29
90445-05019-00 Hose (L200) |
90445-05019-00 |
from US $1.85 |
||
| replacements | |||||
|
29
|
29
904-4505N-13-00 Hose (L200) |
904-4505N-13-00 |
from US $3.33 |
||
|
29
|
29
904-4505M-07-00 Hose (L700) |
904-4505M-07-00 |
from US $5.41 |
||
|
30
|
30
2A6-13164-01-00
Conct, Delivery Ppe
|
2A6-13164-01-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
90445-05024-00 Hose (L200) |
90445-05024-00 |
from US $1.13 |
||
| replacements | |||||
|
31
|
31
904-4505N-13-00 Hose (L200) |
904-4505N-13-00 |
from US $3.33 |
||
|
31
|
31
904-4505M-07-00 Hose (L700) |
904-4505M-07-00 |
from US $5.41 |
||
