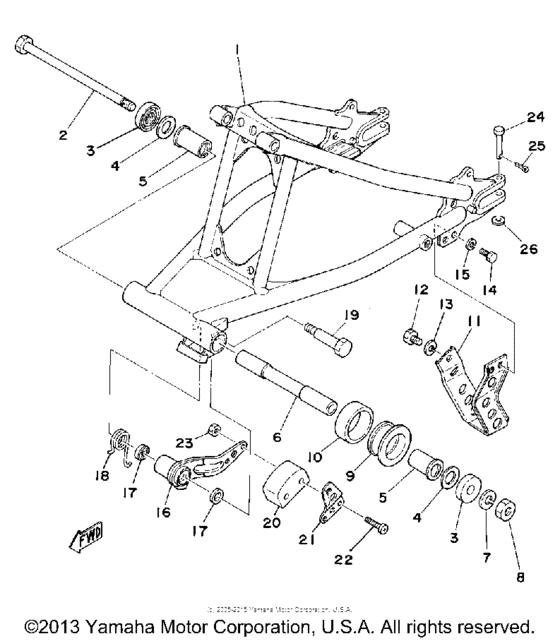

Rear arm & suspension Diagram Yamaha MX
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3M2-22110-00-33
Rear Arm
|
3M2-22110-00-33 |
— | ||
|
2
|
2
2N4-22141-00-00 Shaft, Pivot |
2N4-22141-00-00 |
from US $28.76 |
||
|
3
|
3
401-22128-01-00 Cover, Thrust 1 |
401-22128-01-00 |
from US $8.42 |
||
|
4
|
4
401-22127-00-00 Shim |
401-22127-00-00 |
from US $3.12 |
||
|
5
|
5
90386-18028-00 Bush |
90386-18028-00 |
from US $8.76 |
||
|
6
|
6
18G-22124-00-00 Bush 2 |
18G-22124-00-00 |
from US $25.64 |
||
|
7
|
7
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
8
|
8
90185-12046-00 Nut, Self-Locking |
90185-12046-00 |
from US $6.38 |
||
| replacement | |||||
|
8
|
8
90185-12134-00 Nut, Self-Locking |
90185-12134-00 |
from US $6.94 |
||
|
9
|
9
2A6-22151-00-00 Seal, Guard |
2A6-22151-00-00 |
from US $10.37 |
||
|
10
|
10
2A6-22152-00-00 Seal, Guard |
2A6-22152-00-00 |
from US $7.78 |
||
|
11
|
11
2A6-22318-00-00 Guard, Chain |
2A6-22318-00-00 |
from US $23.66 |
||
|
12
|
12
97313-08012-00 Bolt (661)661 |
97313-08012-00 |
from US $3.12 |
||
| replacements | |||||
|
12
|
12
999-99999-99-00
Not Available
661 |
999-99999-99-00 |
— | ||
|
12
|
12
97013-08012-00 Bolt661 |
97013-08012-00 |
from US $3.12 |
||
|
13
|
13
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
14
|
14
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
14
|
14
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
14
|
14
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
16
|
16
2A6-22179-00-00 Arm, Tensioner |
2A6-22179-00-00 |
from US $32.06 |
||
| replacement | |||||
|
16
|
16
2A6-22179-01-00 Arm, Tensioner |
2A6-22179-01-00 |
from US $41.63 |
||
|
17
|
17
93104-14044-00 Oil Seal |
93104-14044-00 |
from US $5.67 |
||
| replacement | |||||
|
17
|
17
93109-14021-00 Oil Seal |
93109-14021-00 |
from US $6.11 |
||
|
18
|
18
90508-35350-00 Spring, Torsion |
90508-35350-00 |
from US $8.22 |
||
|
19
|
19
90109-10483-00 Bolt (90109-10533-00)90109-10533-00 |
90109-10483-00 |
from US $11.21 |
||
|
20
|
20
ACC-11130-00-25
Tensioner (2N0-22178-00-00)
2N0-22178-00-00 |
ACC-11130-00-25 |
— | ||
|
21
|
21
1W1-22187-00-00 Guide, Chain |
1W1-22187-00-00 |
from US $10.73 |
||
|
22
|
22
985-01050-35-00
Screw, Pan Head
|
985-01050-35-00 |
— | ||
| replacements | |||||
|
22
|
22
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
22
|
22
98580-05035-00 Screw, Pan Head |
98580-05035-00 |
from US $3.40 |
||
|
23
|
23
953-11057-00-00
Nut(3Fv)
|
953-11057-00-00 |
— | ||
| replacement | |||||
|
23
|
23
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.65 |
||
|
24
|
24
91701-06042-00 Pin |
91701-06042-00 |
from US $3.40 |
||
|
25
|
25
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
26
|
26
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
26
|
26
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
26
|
26
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
