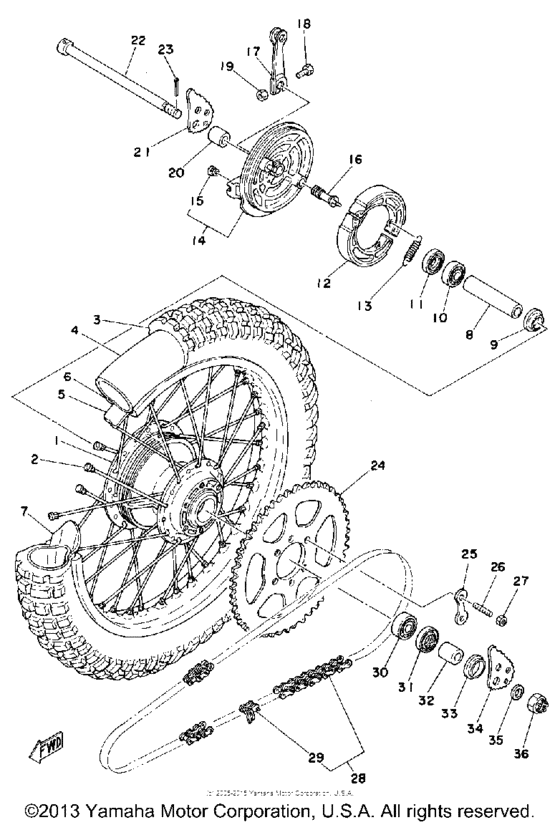

Rear wheel Diagram Yamaha MX
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W1-25311-00-98
Hub, Rear
|
1W1-25311-00-98 |
— | ||
|
2
|
2
401-25304-00-00 Spoke Set, Rear |
401-25304-00-00 |
from US $97.24 |
||
|
3
|
3
941-35185-51-00
Cs 350X18 C-755-1
350X18 C-755-1 |
941-35185-51-00 |
— | ||
|
4
|
4
94235-18085-00 Tube (2.75-18)2.75-18 |
94235-18085-00 |
US $22.55 |
||
| replacement | |||||
|
4
|
4
94232-18113-00 Tube2.75-18 |
94232-18113-00 |
from US $24.92 |
||
|
5
|
5
94325-18043-00 Band, Rim (538)2.50-18 |
94325-18043-00 |
from US $4.39 |
||
| replacement | |||||
|
5
|
5
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.72 |
||
|
6
|
6
94418-18171-00 Rim (1.85-18)1.85-18 |
94418-18171-00 |
from US $145.07 |
||
| replacement | |||||
|
6
|
6
944-18180-07-00 Rim (1.85-18)1.85-18 |
944-18180-07-00 |
from US $145.07 |
||
|
7
|
7
1T2-25394-00-00 Spacer, Bead |
1T2-25394-00-00 |
from US $50.02 |
||
|
8
|
8
90560-15313-00 Spacer |
90560-15313-00 |
from US $25.93 |
||
|
9
|
9
146-25115-00-00 Flange, Spacer |
146-25115-00-00 |
from US $6.23 |
||
|
10
|
10
933-06202-04-00 Bearing |
933-06202-04-00 |
from US $12.06 |
||
|
11
|
11
93104-22018-00 Oil Seal |
93104-22018-00 |
from US $6.52 |
||
|
12
|
12
437-W2536-00-00
Brake Shoe Set-2Pcs
|
437-W2536-00-00 |
— | ||
| replacement | |||||
|
12
|
12
3KG-W253E-00-00 Brake Shoe Kit |
3KG-W253E-00-00 |
from US $30.49 |
||
|
13
|
13
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $8.36 |
||
|
14
|
14
999-99020-24-00
Brake Shoe Plate Assembly (2A6-
2A6- |
999-99020-24-00 |
— | ||
|
15
|
15
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
16
|
16
2RH-25351-00-00 Camshaft |
2RH-25351-00-00 |
from US $33.29 |
||
|
17
|
17
1E2-25155-00-00 Lever, Camshaft 1 |
1E2-25155-00-00 |
from US $20.40 |
||
|
18
|
18
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
19
|
19
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
20
|
20
903-87155-24-00
Collar
|
903-87155-24-00 |
— | ||
|
21
|
21
1W2-25389-01-00 Puller, Chain 2 |
1W2-25389-01-00 |
from US $9.61 |
||
|
22
|
22
5X3-25381-00-00
Axle, Wheel (2A6-25381-00-00)
2A6-25381-00-00 |
5X3-25381-00-00 |
— | ||
|
23
|
23
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
23
|
23
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
24
|
24
18L-25449-20-00 Sprocket, Driven 49TSprocket, driven (49t) 49T |
18L-25449-20-00 |
from US $40.99 |
||
|
24
|
24
1X0-25445-10-33
Gear, Sprocket Wheel
|
1X0-25445-10-33 |
— | ||
| replacement | |||||
|
24
|
24
1X0-25445-10-00
CAP,RADIATOR
|
1X0-25445-10-00 |
— | ||
|
24
|
24
2N0-25447-10-00 Spocket, Drvn 47T47T YAMAHA BLACK |
2N0-25447-10-00 |
US $43.94 |
||
|
25
|
25
1G8-25412-00-00 Washer |
1G8-25412-00-00 |
from US $10.34 |
||
|
26
|
26
90116-10221-00 Bolt, Stud |
90116-10221-00 |
from US $6.61 |
||
|
27
|
27
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
27
|
27
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
27
|
27
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
28
|
28
94580-33118-00 Did428Ds-118L |
94580-33118-00 |
from US $36.75 |
||
| replacements | |||||
|
28
|
28
9Y5-80881-17-00 Chain (D.i.d.428Hg-118L) |
9Y5-80881-17-00 |
from US $36.75 |
||
|
28
|
28
9Y5-82511-17-00 CHAIN |
9Y5-82511-17-00 |
from US $36.75 |
||
|
29
|
29
946-80150-01-00 Joint, Chain |
946-80150-01-00 |
from US $2.54 |
||
| replacements | |||||
|
29
|
29
94682-09001-00 Joint, Chain (Did 428Hg) |
94682-09001-00 |
from US $3.23 |
||
|
29
|
29
94682-51001-00 Joint, Chain |
94682-51001-00 |
from US $3.83 |
||
|
30
|
30
933-06302-02-00 Bearing (1H7) |
933-06302-02-00 |
from US $20.54 |
||
| replacement | |||||
|
30
|
30
93306-30212-00 Bearing |
93306-30212-00 |
from US $16.84 |
||
|
31
|
31
93106-26005-00 Oil Seal |
93106-26005-00 |
from US $7.08 |
||
|
32
|
32
903-87155-24-00
Collar
|
903-87155-24-00 |
— | ||
|
33
|
33
401-25367-00-00 Cover, Hub Dust |
401-25367-00-00 |
from US $8.08 |
||
|
34
|
34
1W2-25388-01-00 Puller, Chain 1 |
1W2-25388-01-00 |
from US $10.48 |
||
|
35
|
35
90201-15238-00 Washer, Plate |
90201-15238-00 |
from US $4.11 |
||
|
36
|
36
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
36
|
36
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
