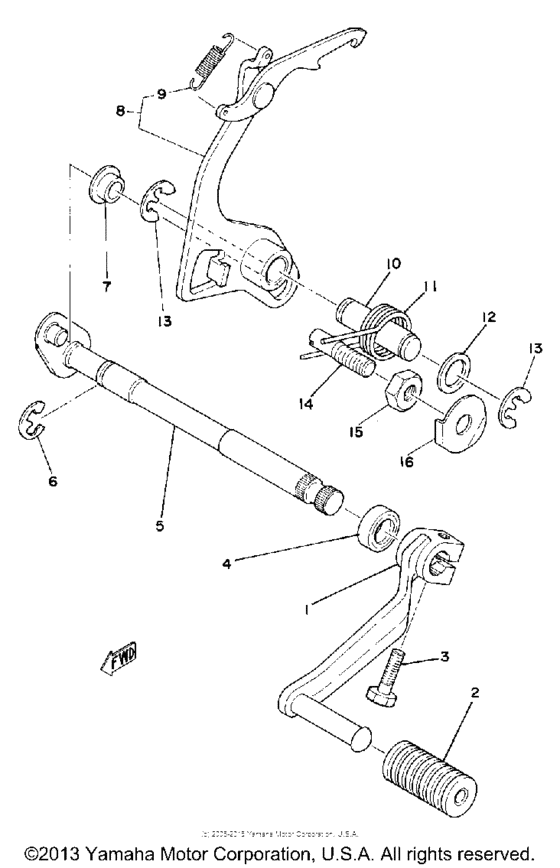

Shift shaft (2) Diagram Yamaha MX
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2A6-18111-00-00 Pedal, Shift |
2A6-18111-00-00 |
from US $44.29 |
||
| replacement | |||||
|
1
|
1
2A6-18110-00-00 Shift Pedal Assy |
2A6-18110-00-00 |
from US $18.52 |
||
|
2
|
2
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
|
3
|
3
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
3
|
3
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
4
|
4
931-01120-60-00 Oil Seal |
931-01120-60-00 |
from US $6.94 |
||
| replacement | |||||
|
4
|
4
931-01121-73-00 Oil Seal |
931-01121-73-00 |
from US $5.40 |
||
|
5
|
5
1W1-18101-03-00
Shift Shaft Assembly 1
|
1W1-18101-03-00 |
— | ||
|
6
|
6
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
7
|
7
401-18178-00-00 Roller, Shift Lever |
401-18178-00-00 |
from US $9.49 |
||
|
8
|
8
4F2-18120-00-00 Shift Lever Assembly (2A6-181202A6-18120 |
4F2-18120-00-00 |
from US $62.86 |
||
|
9
|
9
90506-08155-00 Spring, Tension |
90506-08155-00 |
from US $2.41 |
||
|
10
|
10
1W1-18197-01-00 Shaft |
1W1-18197-01-00 |
from US $9.07 |
||
|
11
|
11
90508-32349-00 Spring, Torsion |
90508-32349-00 |
from US $4.82 |
||
|
12
|
12
902-0112M-34-00 Washer, Plate |
902-0112M-34-00 |
from US $2.69 |
||
|
13
|
13
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
14
|
14
90149-08111-00 Screw, Specl Shape |
90149-08111-00 |
from US $4.96 |
||
|
15
|
15
90170-08029-00 Nut, Hexagon |
90170-08029-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
90170-08193-00 Nut, Hexagon |
90170-08193-00 |
from US $1.56 |
||
|
16
|
16
90215-08014-00 Washer, Lock |
90215-08014-00 |
from US $2.55 |
||
