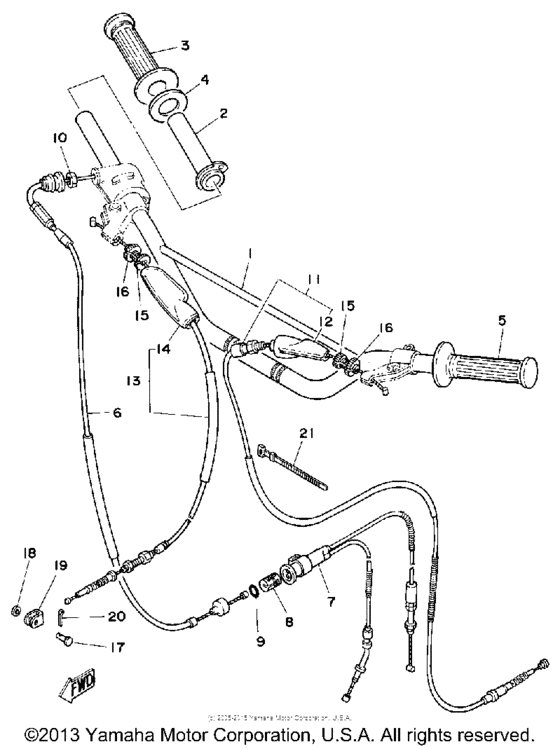

Handlebar-cable Diagram Yamaha MX
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2A8-26111-00-00 Handlebar |
2A8-26111-00-00 |
from US $138.16 |
||
|
2
|
2
434-26243-00-00 Tube, Throttle Guide |
434-26243-00-00 |
from US $8.93 |
||
|
3
|
3
1A0-26242-01-00 Grip Rh (R.h.)RH R.H. |
1A0-26242-01-00 |
from US $10.44 |
||
|
4
|
4
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
5
|
5
1E6-26241-00-00 Grip Lh (L.h.)LH L.H. |
1E6-26241-00-00 |
from US $12.46 |
||
|
6
|
6
2A6-26311-00-00
Cable, Throttle 1
|
2A6-26311-00-00 |
— | ||
|
7
|
7
2A6-26312-00-00
Cable, Throttle 2
|
2A6-26312-00-00 |
— | ||
|
8
|
8
1M1-26263-00-00
Piece, Connecting
|
1M1-26263-00-00 |
— | ||
|
9
|
9
93210-10118-00 O-Ring |
93210-10118-00 |
from US $3.40 |
||
|
10
|
10
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
11
|
11
2A6-26335-01-00 Cable, clutch |
2A6-26335-01-00 |
from US $35.99 |
||
|
12
|
12
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
12
|
12
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
13
|
13
2K5-26341-00-00
Cable, Brake
|
2K5-26341-00-00 |
— | ||
|
14
|
14
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
14
|
14
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
15
|
15
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
15
|
15
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
16
|
16
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
16
|
16
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
17
|
17
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.94 |
||
|
18
|
18
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
19
|
19
156-26347-00-00 Joint, Wire |
156-26347-00-00 |
from US $10.33 |
||
|
20
|
20
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
21
|
21
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
