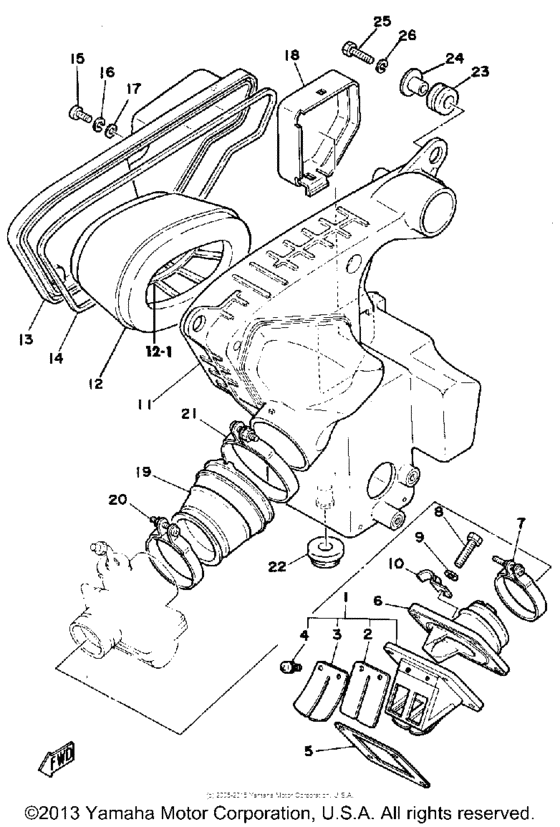

Intake Diagram Yamaha MX
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
558-13610-00-00 Reed Valve Asy |
558-13610-00-00 |
from US $276.32 |
||
| replacement | |||||
|
1
|
1
345-13610-20-00 Reed Valve Assy |
345-13610-20-00 |
from US $276.32 |
||
|
2
|
2
345-13613-70-00 Reed, Valve |
345-13613-70-00 |
from US $46.70 |
||
|
3
|
3
345-13616-70-00 Stopper, Reed Valve |
345-13616-70-00 |
from US $21.99 |
||
|
4
|
4
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
87A-13621-00-00 Gasket, Valve Seat |
87A-13621-00-00 |
from US $4.11 |
||
|
6
|
6
401-13565-01-00
Joint, Carburetor
|
401-13565-01-00 |
— | ||
|
7
|
7
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
7
|
7
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
8
|
8
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.52 |
||
|
9
|
9
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
9
|
9
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
9
|
9
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
10
|
10
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
|
11
|
11
3M2-14411-00-00
Case, Air Cleaner 1
|
3M2-14411-00-00 |
— | ||
|
12
|
12
2A6-14451-00-00 Element, Air Clnr |
2A6-14451-00-00 |
from US $32.87 |
||
| replacement | |||||
|
12
|
12
2A6-14451-01-00 |
2A6-14451-01-00 |
US $20.59 |
||
|
13
|
13
2A6-14412-00-00
Cap, Cleaner Case 1
|
2A6-14412-00-00 |
— | ||
|
14
|
14
4L0-14457-01-00 Seal |
4L0-14457-01-00 |
from US $8.93 |
||
| replacement | |||||
|
14
|
14
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $10.54 |
||
|
15
|
15
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
16
|
16
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
17
|
17
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
17
|
17
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
17
|
17
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
18
|
18
2A6-14417-00-00
Cover 1
|
2A6-14417-00-00 |
— | ||
|
19
|
19
2A7-14453-00-00
Joint, Air Clnr 1
|
2A7-14453-00-00 |
— | ||
|
20
|
20
90460-49058-00 Clamp, Hose |
90460-49058-00 |
from US $6.24 |
||
|
21
|
21
90460-64065-00 Hose Clamp Assy |
90460-64065-00 |
from US $6.80 |
||
| replacement | |||||
|
21
|
21
904-50640-04-00 Hose Clamp Assy |
904-50640-04-00 |
from US $5.06 |
||
|
22
|
22
90480-18171-00 Grommet |
90480-18171-00 |
from US $1.70 |
||
|
23
|
23
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
24
|
24
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
25
|
25
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
25
|
25
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.52 |
||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
