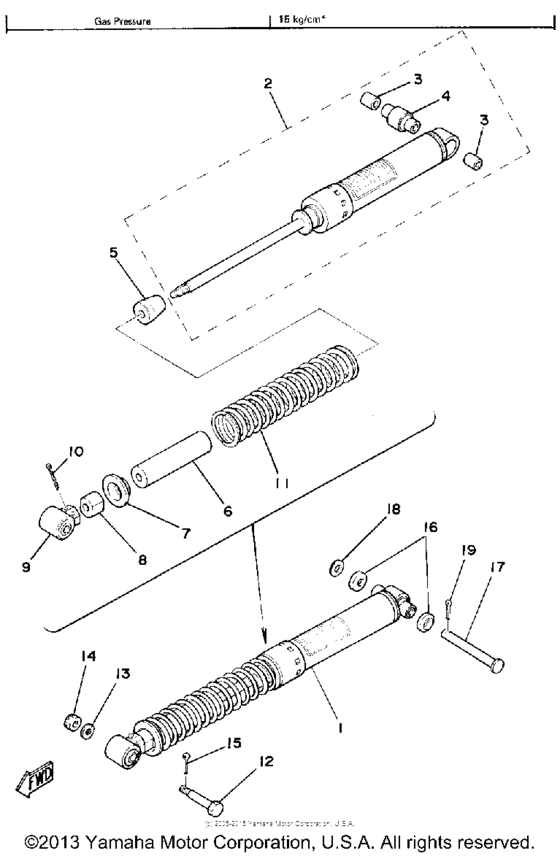

Rear suspension Diagram Yamaha MX
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3J0-22210-00-00
Shk/abs Assembly, Rear
|
3J0-22210-00-00 |
— | ||
|
2
|
2
3J0-22401-00-00
Damper Sub-Assembly
|
3J0-22401-00-00 |
— | ||
|
3
|
3
90380-12051-00 Bush, Solid |
90380-12051-00 |
from US $5.67 |
||
|
4
|
4
1W1-22226-00-00
Bush, Shock Abs Lwr
|
1W1-22226-00-00 |
— | ||
|
5
|
5
3J0-22493-00-00
Bump, Stop
|
3J0-22493-00-00 |
— | ||
|
6
|
6
2N4-22496-00-00
Sleeve, Rod
|
2N4-22496-00-00 |
— | ||
|
7
|
7
2N4-22214-00-00
Guide, Spring 1
|
2N4-22214-00-00 |
— | ||
|
8
|
8
2N4-22213-00-00
Seat, Spring Upper
|
2N4-22213-00-00 |
— | ||
|
9
|
9
1M1-22219-01-00
Bracket, Upper
|
1M1-22219-01-00 |
— | ||
|
10
|
10
91401-30040-00 Pin,cotter |
91401-30040-00 |
from US $4.45 |
||
| replacement | |||||
|
10
|
10
914-90300-45-00 Pin, Cotter |
914-90300-45-00 |
from US $4.53 |
||
|
11
|
11
905-01905-54-00
Spring, Compression
|
905-01905-54-00 |
— | ||
|
12
|
12
90109-10550-00 Bolt |
90109-10550-00 |
from US $8.86 |
||
| replacement | |||||
|
12
|
12
90109-10453-00 Bolt (1M1) |
90109-10453-00 |
from US $10.48 |
||
|
13
|
13
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
14
|
14
953-03109-00-00 Nut, Castle |
953-03109-00-00 |
from US $5.29 |
||
| replacement | |||||
|
14
|
14
953-07109-00-00 Nut, Castle |
953-07109-00-00 |
from US $4.11 |
||
|
15
|
15
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
16
|
16
1W1-22128-00-00 Cover, Thrust 1 |
1W1-22128-00-00 |
from US $10.48 |
||
|
17
|
17
90240-12059-00
Pin, Clevis
|
90240-12059-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
92990-12600-00 Washer, Plate |
92990-12600-00 |
from US $1.42 |
||
|
19
|
19
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
19
|
19
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
