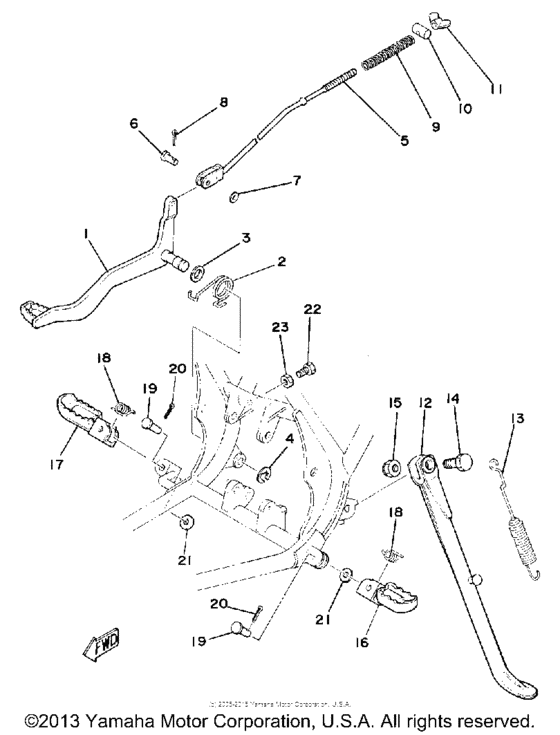

Stand-footrest Diagram Yamaha MX
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3M2-27211-00-33 Pedal, Brake |
3M2-27211-00-33 |
US $58.72 |
||
| replacement | |||||
|
1
|
1
2A6-27211-00-00 Pedal, Brake |
2A6-27211-00-00 |
US $58.72 |
||
|
2
|
2
90508-32354-00 Spring, Torsion |
90508-32354-00 |
from US $4.68 |
||
|
3
|
3
90201-14212-00 Washer, Plate |
90201-14212-00 |
from US $2.55 |
||
|
4
|
4
93430-10015-00 Circlip |
93430-10015-00 |
from US $2.41 |
||
|
5
|
5
1W2-27231-00-00
Rod, Brake
|
1W2-27231-00-00 |
— | ||
| replacement | |||||
|
5
|
5
5L9-F7231-01-00 Brake Rod |
5L9-F7231-01-00 |
US $16.78 |
||
|
6
|
6
90240-06006-00 Pin, Clevis |
90240-06006-00 |
from US $3.68 |
||
|
7
|
7
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
8
|
8
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
8
|
8
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
9
|
9
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.81 |
||
|
10
|
10
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
11
|
11
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
12
|
12
1W1-27311-10-00
Stand, Side
|
1W1-27311-10-00 |
— | ||
|
13
|
13
90507-29008-00 Spring, Tension |
90507-29008-00 |
from US $17.28 |
||
|
14
|
14
90109-103A1-00 Bolt |
90109-103A1-00 |
from US $3.54 |
||
| replacement | |||||
|
14
|
14
90109-10473-00 Bolt |
90109-10473-00 |
from US $3.54 |
||
|
15
|
15
90185-10037-00 Nut, Self-Locking |
90185-10037-00 |
from US $4.16 |
||
|
16
|
16
22W-27411-01-90 Footrest 1 |
22W-27411-01-90 |
from US $29.47 |
||
|
17
|
17
22W-27421-01-90 Footrest 2 (3R1-27421-00)3R1-27421-00 |
22W-27421-01-90 |
from US $36.11 |
||
|
18
|
18
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
19
|
19
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
20
|
20
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
20
|
20
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
21
|
21
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
22
|
22
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
22
|
22
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
23
|
23
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
23
|
23
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
