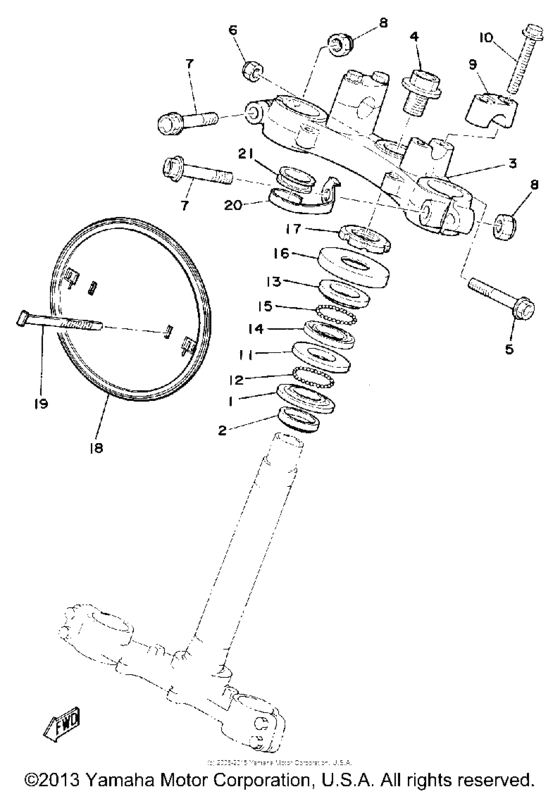

Steering Diagram Yamaha MX
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
1
|
1
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
2
|
2
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.72 |
||
|
3
|
3
2N4-23435-00-98
Crown, Handle
|
2N4-23435-00-98 |
— | ||
|
4
|
4
90105-14136-00 Bolt, Flange |
90105-14136-00 |
from US $2.77 |
||
| replacements | |||||
|
4
|
4
901-05142-20-00 Bolt, Flange |
901-05142-20-00 |
from US $3.68 |
||
|
4
|
4
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
5
|
5
95811-08055-00 Bolt, Flange |
95811-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
6
|
6
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
6
|
6
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
7
|
7
95811-10060-00 Bolt, Flange (5X6) |
95811-10060-00 |
from US $2.83 |
||
| replacement | |||||
|
7
|
7
95817-10060-00 Bolt, Flange |
95817-10060-00 |
from US $2.72 |
||
|
8
|
8
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
9
|
9
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
10
|
10
95811-08035-00 Bolt, Flange (95821-08035-00) |
95811-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.02 |
||
|
11
|
11
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
11
|
11
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
12
|
12
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
13
|
13
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
13
|
13
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
14
|
14
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
14
|
14
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
15
|
15
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
15
|
15
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
16
|
16
10V-23416-01-00 Cover Ball Race |
10V-23416-01-00 |
from US $14.88 |
||
|
17
|
17
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
17
|
17
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
17
|
17
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
18
|
18
3R0-23485-00-00
Plate, Number
|
3R0-23485-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
2X4-23489-00-00
Band
|
2X4-23489-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
2K5-23317-01-00
Holder, Cable
|
2K5-23317-01-00 |
— | ||
|
21
|
21
1W1-23389-00-00 Guide, Cable |
1W1-23389-00-00 |
from US $12.75 |
||
