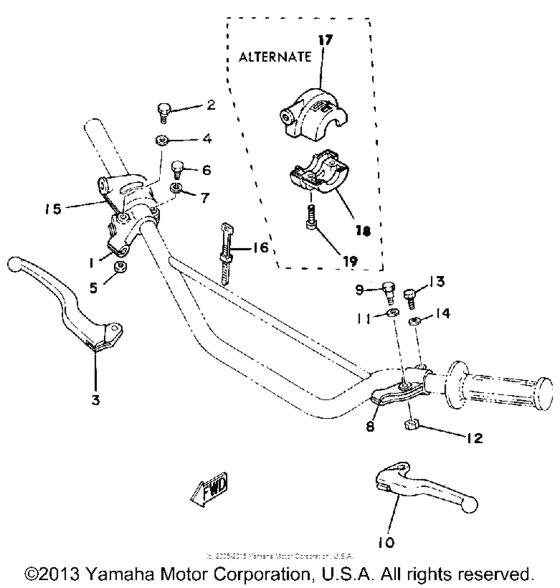

Handle switch & lever Diagram Yamaha MX
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
516-82921-30-00 Holder, Lever 2 |
516-82921-30-00 |
US $71.14 |
||
|
2
|
2
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
2
|
2
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
3
|
3
23X-83922-00-00
Lever 2
|
23X-83922-00-00 |
— | ||
| replacement | |||||
|
3
|
3
23X-83922-01-00 Lever 2 |
23X-83922-01-00 |
from US $20.54 |
||
|
4
|
4
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
5
|
5
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
5
|
5
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
6
|
6
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
6
|
6
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
214-82911-01-00 Holder, Lever 1 |
214-82911-01-00 |
from US $41.72 |
||
|
9
|
9
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
9
|
9
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
10
|
10
23X-83912-00-00
Lever 1
|
23X-83912-00-00 |
— | ||
| replacement | |||||
|
10
|
10
23X-83912-02-00 Lever 1 |
23X-83912-02-00 |
from US $21.96 |
||
|
11
|
11
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
12
|
12
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
13
|
13
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
13
|
13
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
2X6-83976-00-98
Switch, Handle 1
|
2X6-83976-00-98 |
— | ||
|
16
|
16
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
17
|
17
3M2-26281-00-00
Cap, Grip Upper
|
3M2-26281-00-00 |
— | ||
|
18
|
18
437-26282-02-00
Cap, Grip Lower
|
437-26282-02-00 |
— | ||
|
19
|
19
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
