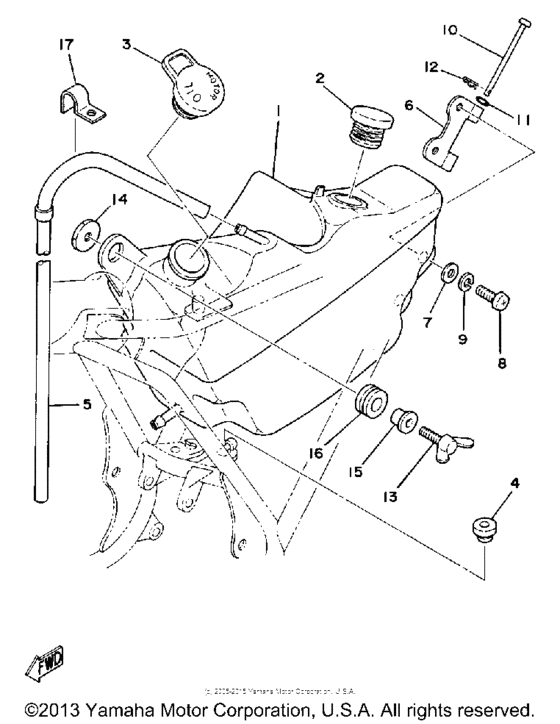

Oil tank Diagram Yamaha MX
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 175
- Model
- MX175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2A6-21751-00-00
Tank, Oil
|
2A6-21751-00-00 |
— | ||
|
2
|
2
3M2-21771-00-00
Body, Cap
|
3M2-21771-00-00 |
— | ||
|
3
|
3
1T9-21771-00-00 Body, Cap |
1T9-21771-00-00 |
from US $9.72 |
||
| replacement | |||||
|
3
|
3
1T9-21771-01-00 BODY CAP |
1T9-21771-01-00 |
from US $9.72 |
||
|
4
|
4
90480-18171-00 Grommet |
90480-18171-00 |
from US $1.70 |
||
|
5
|
5
90445-09361-00
Hose (L540)
|
90445-09361-00 |
— | ||
|
6
|
6
2A6-21796-00-00
Hinge
|
2A6-21796-00-00 |
— | ||
|
7
|
7
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
7
|
7
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
8
|
8
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
8
|
8
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
91701-05050-00
Pin
|
91701-05050-00 |
— | ||
|
11
|
11
93210-04122-00 O-Ring |
93210-04122-00 |
from US $1.98 |
||
|
12
|
12
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
13
|
13
901-22060-21-00
Bolt, Wing (38W)
38W |
901-22060-21-00 |
— | ||
|
14
|
14
90179-06013-00 Nut, Spec''l Shape |
90179-06013-00 |
from US $2.30 |
||
|
15
|
15
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
16
|
16
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
17
|
17
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
