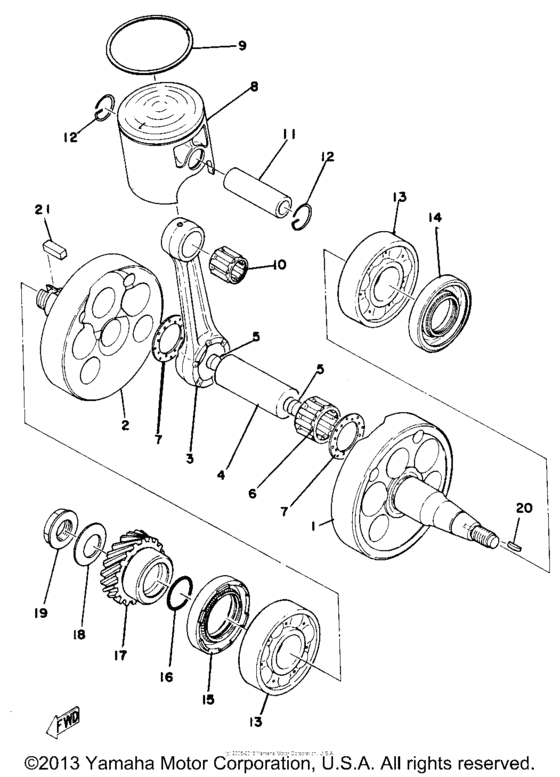

Crankshaft & Piston Diagram Yamaha MX
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- MX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
509-11400-00-00
Crankshaft Assembly
|
509-11400-00-00 |
— | ||
|
1
|
1
509-11412-00-00
Crank 1
|
509-11412-00-00 |
— | ||
|
2
|
2
509-11422-01-00
No Longer Available
|
509-11422-01-00 |
— | ||
|
2
|
2
509-11630-00-00
Piston Kit Std
|
509-11630-00-00 |
— | ||
|
2
|
2
509-11630-20-00
Piston Kit 2Nd
2ND |
509-11630-20-00 |
— | ||
|
2
|
2
509-11630-40-00
No Longer Available
|
509-11630-40-00 |
— | ||
|
2
|
2
509-11630-30-00
Piston Kit 3Rd
3RD |
509-11630-30-00 |
— | ||
|
2
|
2
509-11630-10-00
Piston Kit 1St
1ST |
509-11630-10-00 |
— | ||
|
3
|
3
498-11651-00-00
Rod, Connecting
|
498-11651-00-00 |
— | ||
|
4
|
4
2X4-11681-00-00 Pin, Crank 1 |
2X4-11681-00-00 |
from US $73.36 |
||
|
5
|
5
214-15385-00-00 Plug, Blind |
214-15385-00-00 |
from US $9.07 |
||
|
6
|
6
933-10425-N4-00
Bearing, Cylindrical
|
933-10425-N4-00 |
— | ||
| replacement | |||||
|
6
|
6
93310-425P2-00 Bearing |
93310-425P2-00 |
from US $46.84 |
||
|
7
|
7
90209-25085-00 Washer, (90209-25220)90209-25220 |
90209-25085-00 |
from US $11.62 |
||
|
8
|
8
509-11631-01-96
Piston Std (69.96Mm Std)
69.96MM STD |
509-11631-01-96 |
— | ||
|
8
|
8
509-11638-01-00
Piston 4 O/s 1.00 (71.00Mm 4Th
O/S 1.00 71.00MM 4TH ALTERNATE PARTS |
509-11638-01-00 |
— | ||
|
8
|
8
509-11637-01-00
Piston 3 O/s 0.75 (70.75Mm 3Rd
O/S 0.75 70.75MM 3RD ALTERNATE PARTS |
509-11637-01-00 |
— | ||
|
8
|
8
509-11635-01-00
Piston 1 O/s 0.25 (70.25Mm 1St
O/S 0.25 70.25MM 1ST ALTERNATE PARTS |
509-11635-01-00 |
— | ||
|
8
|
8
509-11636-01-00
Piston 2 O/s 0.50 (70.50Mm 2Nd
O/S 0.50 70.50MM 2ND SEE M5-006ALTERNATE PARTS |
509-11636-01-00 |
— | ||
|
9
|
9
313-11611-00-00
Ring, Piston Std
|
313-11611-00-00 |
— | ||
|
9
|
9
313-11611-10-00
Ring, Piston 1St
1ST ALTERNATE PARTS |
313-11611-10-00 |
— | ||
|
9
|
9
313-11611-30-00
Ring, Piston 3Rd (3Rd O.s.)
3RD 3RD O.S. ALTERNATE PARTS |
313-11611-30-00 |
— | ||
|
9
|
9
313-11611-40-00
Ring, Piston 4Th (4Th O.s.)
4TH 4TH O.S. ALTERNATE PARTS |
313-11611-40-00 |
— | ||
|
9
|
9
313-11611-20-00
Ring, Piston 2Nd
2ND ALTERNATE PARTS |
313-11611-20-00 |
— | ||
|
10
|
10
93310-218A6-00 Bearing |
93310-218A6-00 |
from US $12.06 |
||
|
11
|
11
214-11633-00-00 Pin, Piston |
214-11633-00-00 |
from US $17.87 |
||
|
12
|
12
93450-20026-00 Circlip |
93450-20026-00 |
from US $2.91 |
||
|
13
|
13
933-06206-22-00
Bearing
|
933-06206-22-00 |
— | ||
| replacement | |||||
|
13
|
13
933-06206-27-00 Bearing (5X5) |
933-06206-27-00 |
from US $32.32 |
||
|
14
|
14
93103-30150-00 Oil Seal (38W)38W |
93103-30150-00 |
from US $18.42 |
||
|
15
|
15
93103-40091-00 Oil Seal |
93103-40091-00 |
from US $21.54 |
||
|
16
|
16
93210-29282-00 O-Ring |
93210-29282-00 |
from US $1.84 |
||
|
17
|
17
509-16111-00-00
Gear, Pri Drive
|
509-16111-00-00 |
— | ||
|
18
|
18
214-16119-00-00 Spring, Belleville |
214-16119-00-00 |
from US $7.93 |
||
|
19
|
19
90179-18172-00 Nut |
90179-18172-00 |
from US $14.87 |
||
|
20
|
20
90280-05014-00 Key, Woodruff |
90280-05014-00 |
from US $3.54 |
||
|
21
|
21
90282-07019-00 Key, Straight |
90282-07019-00 |
from US $6.94 |
||
