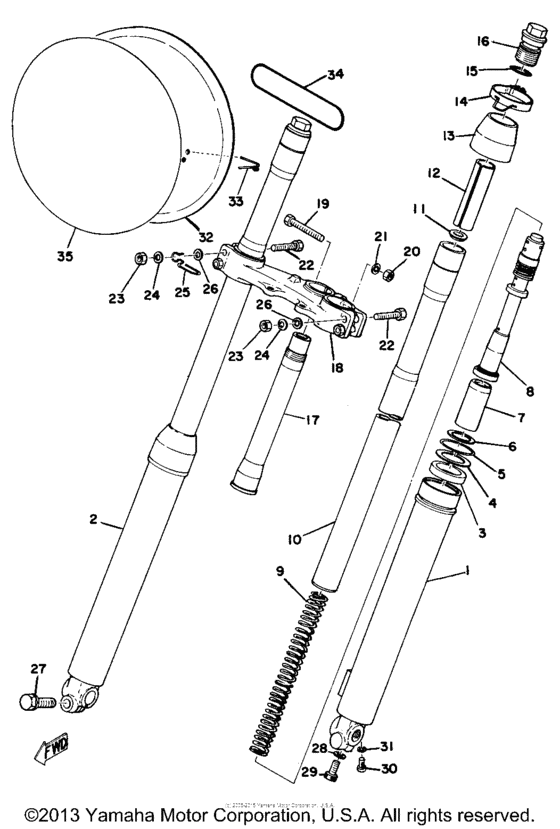

Front fork Diagram Yamaha MX
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- MX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
583-23126-01-00
Tube, Outer 1
|
583-23126-01-00 |
— | ||
|
1
|
1
509-23101-01-00
Front Fork Assembly
|
509-23101-01-00 |
— | ||
|
2
|
2
483-23136-00-00
No Longer Available
|
483-23136-00-00 |
— | ||
|
3
|
3
278-23145-51-00
Oil Seal
|
278-23145-51-00 |
— | ||
| replacement | |||||
|
3
|
3
584-23145-50-00 Oil Seal |
584-23145-50-00 |
from US $24.65 |
||
|
4
|
4
214-23146-00-00
Washer, Oil Seal
|
214-23146-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
214-23156-00-00
Clip, Oil Seal
|
214-23156-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
934-50300-33-00
Circlip, Inner
|
934-50300-33-00 |
— | ||
|
7
|
7
509-23171-00-00
Piston, Front Fork
|
509-23171-00-00 |
— | ||
|
8
|
8
509-23170-01-00
Cylinder, Front Fork
|
509-23170-01-00 |
— | ||
|
9
|
9
509-23141-01-00
Spring, Front Fork
|
509-23141-01-00 |
— | ||
|
9
|
9
509-23141-10-00
Spring, Front Fork
|
509-23141-10-00 |
— | ||
|
9
|
9
509-23141-20-00
Spring, Front Fork
|
509-23141-20-00 |
— | ||
|
10
|
10
509-23141-01-00
Spring, Front Fork
|
509-23141-01-00 |
— | ||
|
11
|
11
278-23142-50-00
Seat, Spring Upper
|
278-23142-50-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
33Y-23118-00-00
Spacer
|
33Y-23118-00-00 |
— | ||
|
13
|
13
292-23144-00-00
Seal, Dust
|
292-23144-00-00 |
— | ||
|
14
|
14
904-60540-61-00
Clamp, Hose
|
904-60540-61-00 |
— | ||
|
15
|
15
214-23114-00-00
Gasket
|
214-23114-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
291-23111-60-00
Bolt, Cap
|
291-23111-60-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
1E6-23341-00-00
Shaft, Steering
|
1E6-23341-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
483-23345-00-33
Bracket, Lower
|
483-23345-00-33 |
— | ||
|
19
|
19
322-23356-00-00
Bolt 2
|
322-23356-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
322-23357-00-00
Nut
|
322-23357-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.36 |
||
|
22
|
22
97313-08055-00 Bolt (661)661 |
97313-08055-00 |
from US $4.12 |
||
| replacement | |||||
|
22
|
22
97013-08055-00 Bolt661 |
97013-08055-00 |
from US $3.55 |
||
|
23
|
23
901-70081-80-00
Nut, Hexagon
|
901-70081-80-00 |
— | ||
| replacement | |||||
|
23
|
23
90170-08216-00 Nut, Hexagon |
90170-08216-00 |
from US $2.88 |
||
|
24
|
24
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
25
|
25
434-23319-00-00
Holder, Cable 2
|
434-23319-00-00 |
— | ||
|
26
|
26
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
27
|
27
J60-23346-00-00
Bolt 1 (90119-08011)
90119-08011 |
J60-23346-00-00 |
— | ||
|
28
|
28
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
29
|
29
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
29
|
29
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
30
|
30
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
31
|
31
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
32
|
32
322-23485-00-00
Plate, Number
|
322-23485-00-00 |
— | ||
|
33
|
33
431-23486-02-00
Stay, Plate
|
431-23486-02-00 |
— | ||
|
34
|
34
93210-99103-00 O-Ring |
93210-99103-00 |
from US $6.38 |
||
|
35
|
35
322-23395-00-00
Emblem
|
322-23395-00-00 |
— | ||
