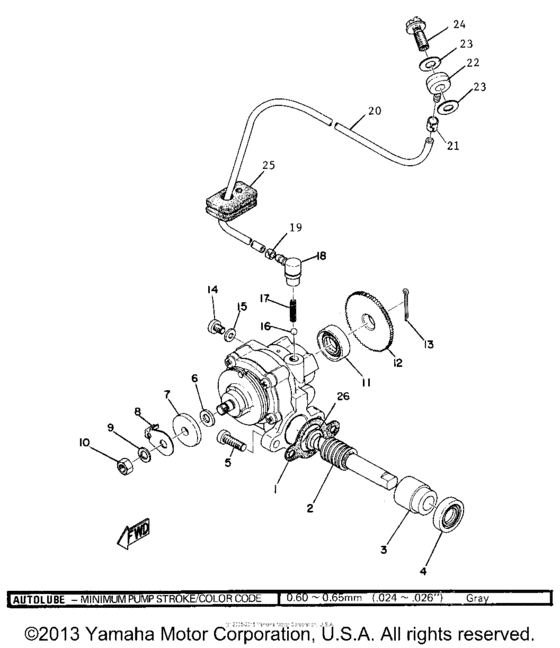

Oil pump Diagram Yamaha MX
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 360
- Model
- MX360
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3MT-13116-00-00
Gasket, Pump Case
|
3MT-13116-00-00 |
— | ||
| replacement | |||||
|
1
|
1
126-13116-01-00 Gasket, Pump Case |
126-13116-01-00 |
from US $1.94 |
||
|
1
|
1
364-13101-00-00
Oil Pump Assembly
|
364-13101-00-00 |
— | ||
|
1
|
1
363-13101-03-00
Oil Pump Assembly
|
363-13101-03-00 |
— | ||
|
2
|
2
1E7-13176-00-00
Metal, Worm Shaft Outer
|
1E7-13176-00-00 |
— | ||
| replacement | |||||
|
2
|
2
137-13176-00-00 Metal, Worm Shaft Outer |
137-13176-00-00 |
from US $9.59 |
||
|
2
|
2
364-13175-00-00
Shaft, Worm
|
364-13175-00-00 |
— | ||
|
3
|
3
1E7-13176-00-00
Metal, Worm Shaft Outer
|
1E7-13176-00-00 |
— | ||
| replacement | |||||
|
3
|
3
137-13176-00-00 Metal, Worm Shaft Outer |
137-13176-00-00 |
from US $9.59 |
||
|
4
|
4
93101-10002-00 Oil Seal |
93101-10002-00 |
from US $5.24 |
||
|
5
|
5
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
5
|
5
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
6
|
6
137-13137-00-05 Shim (T=0.5) |
137-13137-00-05 |
from US $3.26 |
||
|
6
|
6
137-13137-00-03 Shim (T=0.3) |
137-13137-00-03 |
from US $3.26 |
||
|
7
|
7
137-13138-01-00 Plate, Adjusting |
137-13138-01-00 |
from US $7.93 |
||
|
8
|
8
402-13146-00-00
Cover, Ajst Pulley
|
402-13146-00-00 |
— | ||
|
9
|
9
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
11
|
11
931-01100-90-00 Oil Seal (J10) |
931-01100-90-00 |
from US $3.38 |
||
|
12
|
12
137-13128-00-00
Plate, Starter
|
137-13128-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
91401-12018-00
Pin, Cotter
|
91401-12018-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
989-01040-08-00
Screw, Bind
|
989-01040-08-00 |
— | ||
| replacement | |||||
|
14
|
14
98980-04008-00 Screw, Bind |
98980-04008-00 |
from US $1.21 |
||
|
15
|
15
90430-04004-00 Gasket |
90430-04004-00 |
from US $1.28 |
||
|
16
|
16
93505-32002-00 Ball |
93505-32002-00 |
from US $1.84 |
||
|
17
|
17
90501-02018-00 Spring, Compression |
90501-02018-00 |
from US $3.97 |
||
|
18
|
18
353-13552-01-00 Nozzle |
353-13552-01-00 |
from US $10.98 |
||
|
19
|
19
90468-02033-00 Clip |
90468-02033-00 |
from US $1.35 |
||
|
20
|
20
904-45053-01-00
Hose (L700)
|
904-45053-01-00 |
— | ||
| replacement | |||||
|
20
|
20
904-4505M-07-00 Hose (L700) |
904-4505M-07-00 |
from US $5.41 |
||
|
20
|
20
90445-052F5-00 Hose (L200) |
90445-052F5-00 |
from US $1.73 |
||
| replacements | |||||
|
20
|
20
904-4505N-13-00 Hose (L200) |
904-4505N-13-00 |
from US $3.33 |
||
|
20
|
20
904-4505M-07-00 Hose (L700) |
904-4505M-07-00 |
from US $5.41 |
||
|
21
|
21
90468-02033-00 Clip |
90468-02033-00 |
from US $1.35 |
||
|
22
|
22
214-13162-01-00 Banjo, Dlvry PipeBanjo,delivery pipe |
214-13162-01-00 |
from US $30.32 |
||
|
23
|
23
90430-06011-00 GasketGasket (137-13167-00) |
90430-06011-00 |
from US $3.26 |
||
| replacement | |||||
|
23
|
23
904-30062-24-00 Gasket |
904-30062-24-00 |
from US $2.79 |
||
|
24
|
24
90401-06001-00 Bolt, Union |
90401-06001-00 |
from US $5.10 |
||
|
25
|
25
363-13174-00-00
Holder, Oil Pipe
|
363-13174-00-00 |
— | ||
|
26
|
26
90201-08624-00 Washer, Plate |
90201-08624-00 |
from US $1.70 |
||
