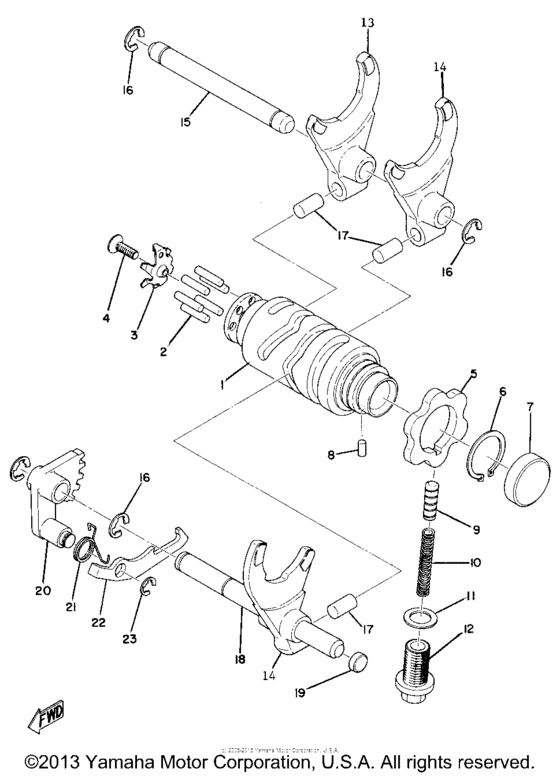

Shift shaft (1) Diagram Yamaha MX
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 360
- Model
- MX360
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
434-18540-03-00
Shift Cam Assembly (434-18541-0
434-18541-0 |
434-18540-03-00 |
— | ||
|
1
|
1
364-18541-00-00
Cam, Shift
|
364-18541-00-00 |
— | ||
|
2
|
2
93604-18100-00 Pin, Dowel |
93604-18100-00 |
from US $1.84 |
||
|
3
|
3
434-18561-00-00 Plate, Side 1 |
434-18561-00-00 |
from US $2.98 |
||
|
3
|
3
363-18561-01-00
Plate, Side 1
|
363-18561-01-00 |
— | ||
|
4
|
4
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
4
|
4
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $2.21 |
||
|
5
|
5
360-18141-01-00
Plate, Stopper
|
360-18141-01-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
99009-30400-00 Circlip |
99009-30400-00 |
from US $1.56 |
||
|
7
|
7
903-38320-31-00
Plug, Spec''l Shape
|
903-38320-31-00 |
— | ||
|
8
|
8
93604-08071-00 Pin, Dowel |
93604-08071-00 |
from US $1.45 |
||
|
9
|
9
278-18547-02-00
Stopper, Cam
|
278-18547-02-00 |
— | ||
|
10
|
10
90501-10062-00 Spring Compression278185570000 |
90501-10062-00 |
from US $1.70 |
||
|
11
|
11
137-15353-00-00
Gasket, Drain
|
137-15353-00-00 |
— | ||
| replacement | |||||
|
11
|
11
4F4-14766-00-00 Washer, Protector (Gasket) |
4F4-14766-00-00 |
from US $5.95 |
||
|
12
|
12
90109-14485-00 Bolt |
90109-14485-00 |
from US $8.86 |
||
|
13
|
13
363-18511-00-00 Fork, Shift 1 |
363-18511-00-00 |
from US $75.11 |
||
|
14
|
14
364-18511-00-00 Fork, Shift 1 |
364-18511-00-00 |
from US $79.03 |
||
|
15
|
15
363-18535-00-00 Bar, Shift Fork Guide 2 |
363-18535-00-00 |
from US $11.02 |
||
|
16
|
16
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.52 |
||
|
17
|
17
90250-08017-00 Pin 2781855200 |
90250-08017-00 |
from US $1.70 |
||
|
18
|
18
363-18531-00-00 Bar, Shif Frk Gde 1 |
363-18531-00-00 |
US $16.01 |
||
|
19
|
19
903-34100-06-00
Plug, Straight
|
903-34100-06-00 |
— | ||
|
20
|
20
434-18122-00-00 Lever, Shift 2 |
434-18122-00-00 |
from US $46.56 |
||
|
20
|
20
363-18122-00-00
Lever, Shift 2
|
363-18122-00-00 |
— | ||
|
21
|
21
90508-08008-00
Spring, Torsion (363-18123-00)
363-18123-00 |
90508-08008-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
363-18123-00 |
999-99999-99-00 |
— | ||
|
22
|
22
498-18151-03-00 Lever, Shift 3 |
498-18151-03-00 |
from US $11.19 |
||
|
23
|
23
99080-07600-00 Clip |
99080-07600-00 |
from US $1.77 |
||
