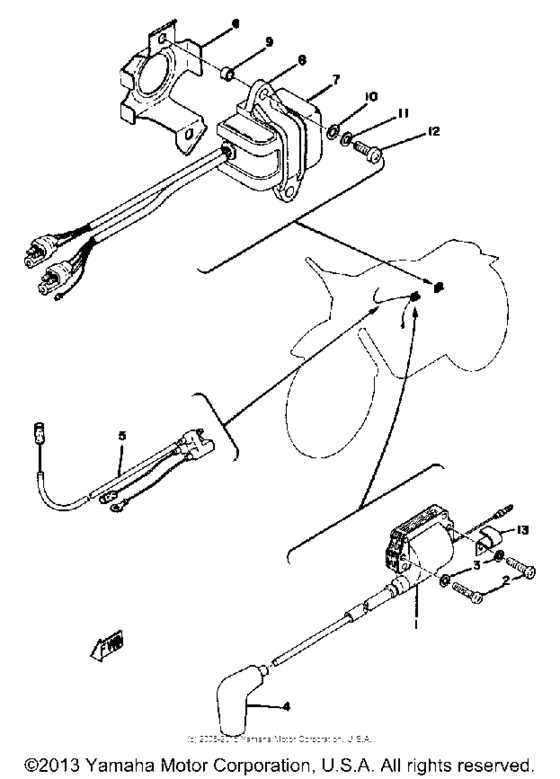

Electrical Diagram Yamaha MX
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 400
- Model
- MX400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5G4-82310-40-00 Ignition Coil Assembly |
5G4-82310-40-00 |
from US $163.03 |
||
| replacement | |||||
|
1
|
1
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
2
|
2
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
2
|
2
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
294-82370-00-00
Plug Cap Assembly
|
294-82370-00-00 |
— | ||
|
5
|
5
509-85517-01-00
Wire, Sub Lead
|
509-85517-01-00 |
— | ||
|
6
|
6
509-85542-00-00
Bracket
|
509-85542-00-00 |
— | ||
|
7
|
7
445-85540-22-00
Cdi Unit Assembly
|
445-85540-22-00 |
— | ||
|
8
|
8
510-85546-00-00
Band
|
510-85546-00-00 |
— | ||
|
9
|
9
90387-062N2-00 Collar |
90387-062N2-00 |
from US $1.42 |
||
|
10
|
10
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
11
|
11
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $3.26 |
||
| replacement | |||||
|
11
|
11
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
