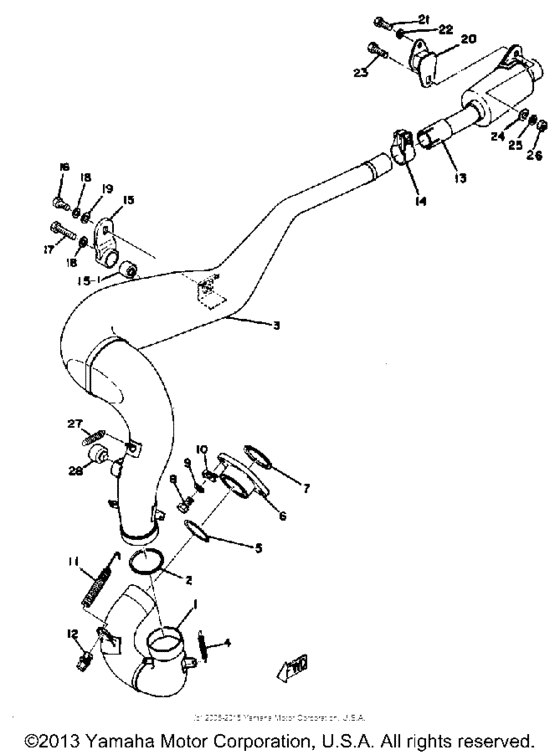

Exhaust Diagram Yamaha MX
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 400
- Model
- MX400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
164-22216-00-00 Bushing, Rear Cushion |
164-22216-00-00 |
from US $8.60 |
||
|
1
|
1
510-14611-01-00
Pipe, Exhaust L
|
510-14611-01-00 |
— | ||
|
2
|
2
248-14623-00-00
Gasket
|
248-14623-00-00 |
— | ||
| replacement | |||||
|
2
|
2
248-14623-10-00 Gasket |
248-14623-10-00 |
from US $7.37 |
||
|
3
|
3
510-14711-02-00
Muffler L
|
510-14711-02-00 |
— | ||
|
4
|
4
905-06180-68-00
Spring, Tension
|
905-06180-68-00 |
— | ||
|
5
|
5
248-14623-00-00
Gasket
|
248-14623-00-00 |
— | ||
| replacement | |||||
|
5
|
5
248-14623-10-00 Gasket |
248-14623-10-00 |
from US $7.37 |
||
|
6
|
6
214-14612-00-00
Nut, Ring
|
214-14612-00-00 |
— | ||
|
7
|
7
214-14613-00-00 Gasket, Exhaust Pipe |
214-14613-00-00 |
from US $17.57 |
||
| replacement | |||||
|
7
|
7
214-14613-09-00 SPRING,TENSION |
214-14613-09-00 |
from US $15.12 |
||
|
8
|
8
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
8
|
8
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
363-14685-00-00
Plate
|
363-14685-00-00 |
— | ||
|
11
|
11
905-07200-12-00
Spring, Tension (145-14683-00)
145-14683-00 |
905-07200-12-00 |
— | ||
|
12
|
12
901-09083-04-00
Bolt
|
901-09083-04-00 |
— | ||
|
13
|
13
510-14753-01-00
Silencer, Exhaust
|
510-14753-01-00 |
— | ||
|
14
|
14
904-60350-76-00
Clamp, Hose
|
904-60350-76-00 |
— | ||
|
15
|
15
483-14771-00-00
Stay, Muffler 1
|
483-14771-00-00 |
— | ||
|
16
|
16
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
16
|
16
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
17
|
17
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
17
|
17
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
18
|
18
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
19
|
19
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
20
|
20
483-14781-02-00 Stay, Muffler 2 |
483-14781-02-00 |
from US $60.93 |
||
|
21
|
21
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
21
|
21
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
23
|
23
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
23
|
23
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
24
|
24
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
25
|
25
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
26
|
26
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
26
|
26
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
27
|
27
905-06141-29-00 Spring, Tension |
905-06141-29-00 |
US $11.68 |
||
|
28
|
28
278-27114-00-00 Stopper, Main Stand |
278-27114-00-00 |
from US $5.28 |
||
