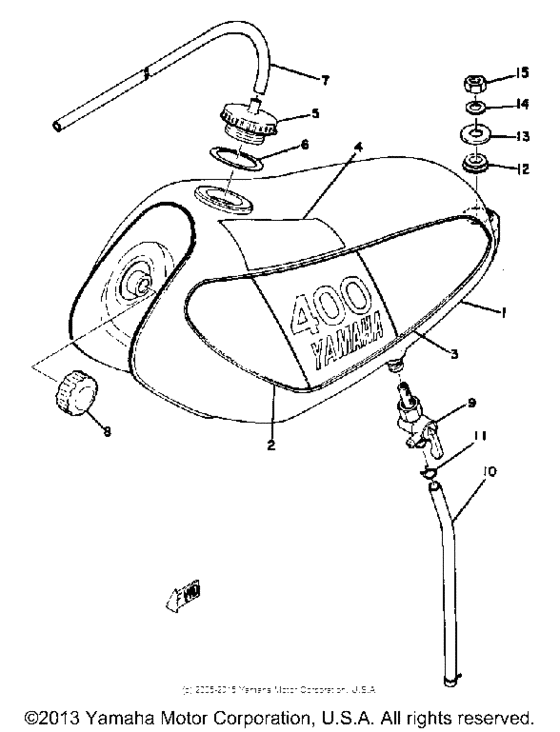

Fuel tank Diagram Yamaha MX
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 400
- Model
- MX400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
509-24110-00-02
Fuel Tank
|
509-24110-00-02 |
— | ||
|
2
|
2
510-24244-00-00
Graphic, Fuel Tnk 1
|
510-24244-00-00 |
— | ||
|
2
|
2
510-24247-00-00
Graphic, Fuel Tnk 4
|
510-24247-00-00 |
— | ||
|
3
|
3
510-24245-00-00
Graphic, Fuel Tnk 2
|
510-24245-00-00 |
— | ||
|
3
|
3
510-24248-00-00
Graphic, Fuel Tnk 5
|
510-24248-00-00 |
— | ||
|
4
|
4
509-24246-00-00
Graphic, Fuel Tnk 3
|
509-24246-00-00 |
— | ||
|
4
|
4
509-24249-00-00
Graphic, Fuel Tnk 6
|
509-24249-00-00 |
— | ||
|
5
|
5
322-24611-02-00 Body, Cap |
322-24611-02-00 |
from US $48.08 |
||
|
6
|
6
90430-35122-00 Gasket |
90430-35122-00 |
from US $4.68 |
||
|
6
|
6
904-30370-52-00 Gasket (322-24612-00)322-24612-00 |
904-30370-52-00 |
from US $4.82 |
||
|
7
|
7
90445-09111-00 Hose (L675) |
90445-09111-00 |
from US $19.84 |
||
| replacement | |||||
|
7
|
7
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
8
|
8
278-24181-00-00
Damper, Locating 1
|
278-24181-00-00 |
— | ||
| replacement | |||||
|
8
|
8
3TB-24181-00-00 Damper, Locating 1 |
3TB-24181-00-00 |
from US $4.96 |
||
|
9
|
9
322-24500-02-00 Fuel Cock Assembly 1 (322-24500322-24500 |
322-24500-02-00 |
from US $97.13 |
||
|
10
|
10
904-45114-91-00 Hose |
904-45114-91-00 |
US $6.66 |
||
|
10
|
10
904-45111-49-00 Hose7465 |
904-45111-49-00 |
US $8.36 |
||
|
11
|
11
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
11
|
11
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.39 |
||
|
11
|
11
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
|
12
|
12
90480-25189-00 Grommet |
90480-25189-00 |
from US $2.70 |
||
|
13
|
13
902-09101-01-00
Washer, Spec''l Shap
|
902-09101-01-00 |
— | ||
|
14
|
14
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
15
|
15
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
15
|
15
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
