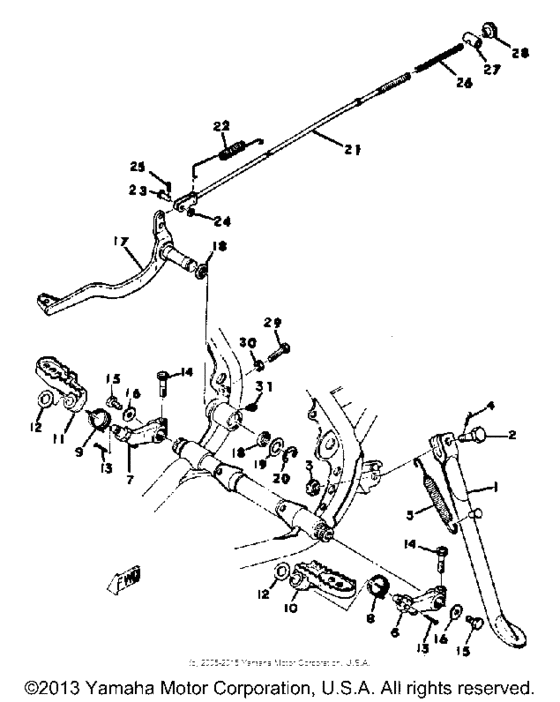

Stand-footrest-brake pedal Diagram Yamaha MX
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 400
- Model
- MX400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
214-27311-01-00
Stand, Side
|
214-27311-01-00 |
— | ||
|
2
|
2
90102-10006-00 Bolt, With Hole (278-27317-00)278-27317-00 |
90102-10006-00 |
from US $8.64 |
||
|
3
|
3
953-03109-00-00 Nut, Castle |
953-03109-00-00 |
from US $5.29 |
||
| replacement | |||||
|
3
|
3
953-07109-00-00 Nut, Castle |
953-07109-00-00 |
from US $4.11 |
||
|
4
|
4
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
5
|
5
905-07290-04-00 Spring, Tension (214-27316-00)214-27316-00 |
905-07290-04-00 |
US $8.22 |
||
| replacement | |||||
|
5
|
5
90506-26270-00 Spring, Tension (1L9)214-27316-00 |
90506-26270-00 |
from US $8.22 |
||
|
6
|
6
483-27412-02-00
Bracket, Footrest 1
|
483-27412-02-00 |
— | ||
|
7
|
7
483-27422-02-00
Bracket, Footrest 2
|
483-27422-02-00 |
— | ||
|
8
|
8
905-08262-26-00
Spring, Torsion (322-27426-00)
322-27426-00 |
905-08262-26-00 |
— | ||
|
9
|
9
905-08262-27-00
Spring, Torsion (322-27456-00)
322-27456-00 |
905-08262-27-00 |
— | ||
|
10
|
10
431-27411-01-00
Footrest 1
|
431-27411-01-00 |
— | ||
|
11
|
11
431-27421-01-00
Footrest 2
|
431-27421-01-00 |
— | ||
|
12
|
12
90201-10123-00 Washer, Plate (10.5-18-1.6) (2510.5-18-1.6 25 |
90201-10123-00 |
from US $2.55 |
||
|
13
|
13
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
14
|
14
97001-08025-00 Bolt (1Nv) |
97001-08025-00 |
from US $1.21 |
||
| replacement | |||||
|
14
|
14
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
15
|
15
97011-10016-00 Bolt,hexagon |
97011-10016-00 |
from US $3.26 |
||
| replacement | |||||
|
15
|
15
970-17100-16-00 Bolt,hexagon |
970-17100-16-00 |
from US $2.64 |
||
|
16
|
16
90201-10639-00 Washer, Plate |
90201-10639-00 |
from US $6.09 |
||
|
17
|
17
509-27211-01-33
Pedal, Brake
|
509-27211-01-33 |
— | ||
|
18
|
18
931-04150-05-00
Oil Seal, So-Type
|
931-04150-05-00 |
— | ||
|
19
|
19
90201-15340-00 Washer, Plate |
90201-15340-00 |
from US $2.27 |
||
| replacement | |||||
|
19
|
19
90201-153A1-00 Washer (3Xvc) |
90201-153A1-00 |
from US $2.27 |
||
|
20
|
20
99001-12600-00 Circlip |
99001-12600-00 |
from US $1.56 |
||
|
21
|
21
483-27231-00-00
Rod, Brake
|
483-27231-00-00 |
— | ||
|
22
|
22
905-06201-28-00
Spring, Tension
|
905-06201-28-00 |
— | ||
|
23
|
23
90240-06103-00 Pin, Clevis (24X) |
90240-06103-00 |
from US $4.11 |
||
|
24
|
24
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
25
|
25
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
26
|
26
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.81 |
||
|
27
|
27
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
28
|
28
901-79060-06-00
Nut, Spec''l Shape
|
901-79060-06-00 |
— | ||
|
29
|
29
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
29
|
29
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
30
|
30
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
30
|
30
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
31
|
31
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
